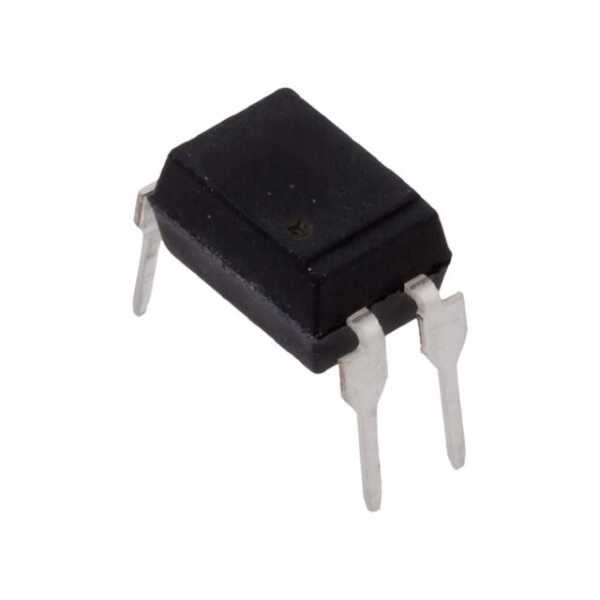

UPC817CG DIP-4 Transistor Output Optocupler

UPC817CG DIP-4 Transistor Output Optocupler

UPC817CG DIP-4 Transistor Output Optocupler Description

UPC817CG DIP-4 Transistor Output Optocupler is a crucial component in the field of electronics, offering reliable isolation between input and output circuits. This component is essential for applications requiring signal transmission across different voltage levels, enhancing safety and performance in electronic designs.

UPC817CG DIP-4 Transistor Output Optocupler Features

• High Isolation Voltage: Provides excellent protection with a typical isolation voltage of 5000 Vrms.
• Compact DIP-4 Package: The DIP-4 configuration allows for easy integration into standard PCBs.
• High-Speed Operation: Facilitates rapid signal transmission with a maximum response time of 4 µs.
• Low Power Consumption: Efficient design ensures minimal power usage, increasing overall system efficiency.
• Wide Temperature Range: Operates effectively in temperatures ranging from -40°C to +100°C, suitable for various environments.
• LED and Phototransistor: Incorporates an LED and phototransistor pair for effective signal isolation.
• RoHS Compliant: Environmentally friendly, adhering to the latest safety and compliance standards.

UPC817CG DIP-4 Transistor Output Optocupler Applications

• Industrial Automation: Used in systems that require electrical isolation with reliable performance in controlling machinery and processes.
• Switching Power Supplies: Provides isolation and signal transmission in power supply circuits, ensuring safe and efficient power management.
• Telecommunications: Integral in telephone systems and data communication devices where signal integrity and noise reduction are critical.
