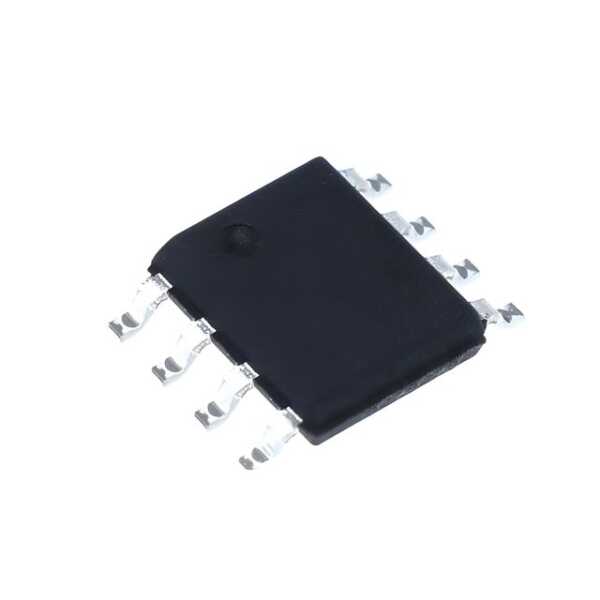

TPC8206 SOP-8 5A 60V 1.5W 0.05Ω N-Channel Mosfet

TPC8206 SOP-8 5A 60V 1.5W 0.05Ω N-Channel Mosfet

TPC8206 SOP-8 5A 60V 1.5W 0.05Ω N-Channel Mosfet Description

TPC8206 SOP-8 5A 60V 1.5W 0.05Ω N-Channel Mosfet is a high-performance N-channel MOSFET designed for efficiency and reliability in power management applications. With its robust 60V voltage rating and 5A current capacity, this MOSFET is ideal for engineers seeking to optimize their circuit designs. The compact SOP-8 package ensures easy integration into various electronic systems, while the low on-resistance of 0.05 Ohm minimizes power loss and heat generation, making it a pivotal component in modern electronic applications.

TPC8206 SOP-8 5A 60V 1.5W 0.05Ω N-Channel Mosfet Features

• Maximum Drain-Source Voltage: 60V
• Continuous Drain Current: 5A
• Power Dissipation: 1.5W
• Package Type: SOP-8
• RDS(on) (Max) @ VGS: 0.05 Ohm
• Gate Threshold Voltage: [Placeholder]
• Operating Temperature Range: [Placeholder]

TPC8206 SOP-8 5A 60V 1.5W 0.05Ω N-Channel Mosfet Applications

• Power Supply Units: Ideal for use in DC-DC converters and voltage regulation systems.
• Motor Control: Efficiently drives motors in automotive and industrial applications.
• Switching Regulators: Enhances performance in switching mode power supplies.
