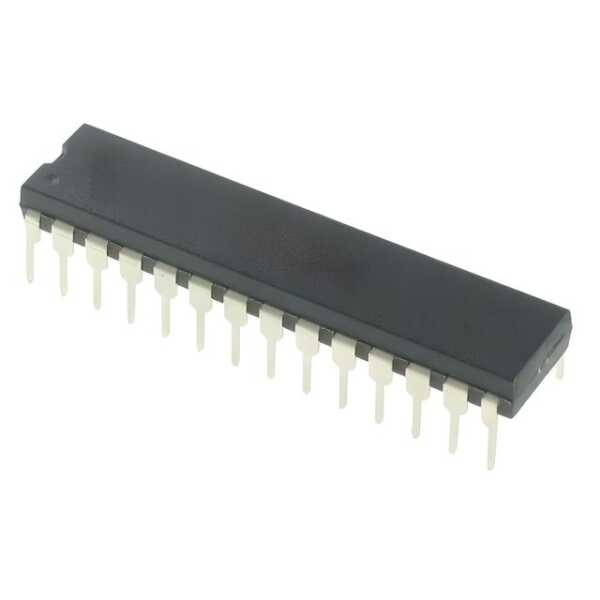

TLC5940NT PDIP-28 LED Lighting Driver IC

TLC5940NT PDIP-28 LED Lighting Driver IC

TLC5940NT PDIP-28 LED Lighting Driver IC Description

TLC5940NT PDIP-28 LED Lighting Driver IC is a high-performance integrated circuit designed to efficiently manage and drive LED arrays. Its robust architecture and versatile applications make it a preferred choice in the electronics industry for creating dynamic lighting solutions. Ideal for engineers and designers, the TLC5940NT offers precision control over LED brightness and illumination patterns, enhancing both aesthetic and functional lighting designs.

TLC5940NT PDIP-28 LED Lighting Driver IC Features

• 16-Channel PWM Control: Provides precise brightness control for up to 16 LED outputs.
• Current Sink Capability: Supports up to 120mA per channel, ensuring high-intensity LED illumination.
• Serial Data Interface: Simplifies communication with microcontrollers through a serial interface.
• Integrated Error Detection: Ensures reliable operation with built-in open and short circuit detection.
• Thermal Shutdown Protection: Safeguards the Entegresi from overheating, enhancing durability.
• Compact PDIP-28 Package: Facilitates easy integration into various electronic designs.
• Adjustable Output Current: Enables customization of LED brightness levels for diverse applications.

TLC5940NT PDIP-28 LED Lighting Driver IC Applications

• Architectural Lighting: Ideal for creating dynamic lighting effects in buildings and structures.
• Automotive Lighting Systems: Enhances vehicle illumination with customizable LED control.
• Display Backlighting: Perfect for controlling LED backlighting in screens and monitors.
