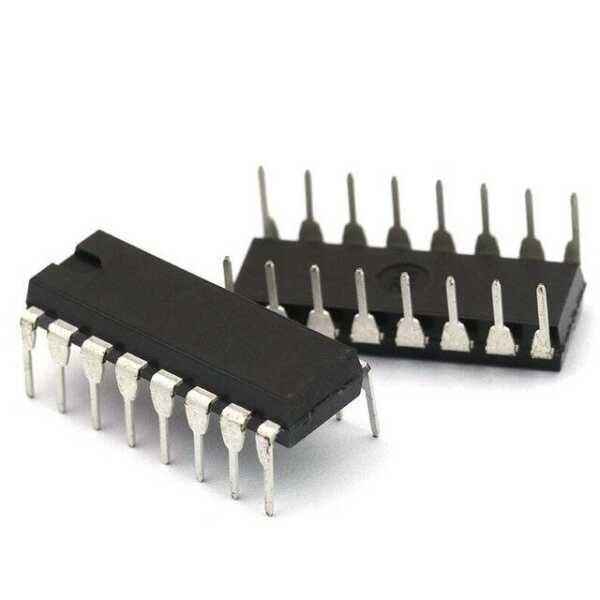

SN74LS48N PDIP-16 Logic IC

SN74LS48N PDIP-16 Logic IC

SN74LS48N PDIP-16 Logic IC Description

The SN74LS48N PDIP-16 Mantık Entegresi is a high-performance BCD to 7-segment decoder/driver with an emphasis on reliability and efficiency. This logic integrated circuit is essential in digital electronics, transforming binary-coded decimal inputs into the necessary signals to drive LED displays. It is widely used in various industries due to its robust functionality and compatibility with standard TTL systems.

SN74LS48N PDIP-16 Logic IC Features

• High-speed operation: Optimized for minimal delay in digital circuit applications.
• Low power consumption: Designed to perform efficiently with reduced energy usage.
• BCD to 7-segment conversion: Converts binary-coded decimals into segment signals accurately.
• TTL compatibility: Seamlessly integrates with TTL input logic levels.
• Open-collector outputs: Suitable for driving LED displays directly.
• Compact PDIP-16 package: Ensures easy installation and minimal board space usage.
• Temperature stability: Maintains performance across a wide temperature range.

SN74LS48N PDIP-16 Logic IC Applications

• Digital clocks: Powers the 7-segment displays in timekeeping devices.
• Instrumentation panels: Utilized in the numeric display units of various measurement tools.
• Consumer electronics: Commonly used in household appliances with digital displays.
