SN74LS09N PDIP-14 Logic IC

SN74LS09N PDIP-14 Logic IC

SN74LS09N PDIP-14 Logic IC Description

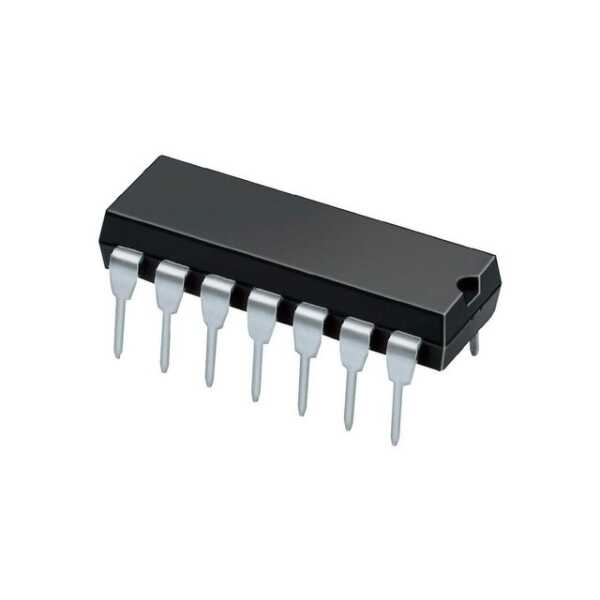

SN74LS09N PDIP-14 Logic IC is a highly reliable digital logic device designed for use in a range of electronic applications. This Mantık Entegresi is integral to creating complex logical functions within electronic circuits, making it a staple for engineers and professionals in the industry. The PDIP-14 package ensures easy integration with various systems, providing robust performance and versatility in digital logic design.

SN74LS09N PDIP-14 Logic IC Features

• Quad 2-input AND gates: Facilitates multiple logic operations within a single device.
• TTL Compatible Inputs: Ensures seamless interface with other TTL logic families.
• Operating Voltage Range: 4.75V to 5.25V provides stable performance in standard voltage environments.
• High Noise Immunity: Reduces errors in noisy environments, enhancing signal integrity.
• Low Power Consumption: Efficient energy usage extends the operational life of electronic systems.
• Temperature Range: Suitable for commercial temperature applications, ranging from 0°C to 70°C.
• Standard Pin Configuration: Ensures compatibility with existing PDIP-14 sockets.

SN74LS09N PDIP-14 Logic IC Applications

• Digital Circuit Design: Ideal for constructing basic digital logic circuits in educational settings and professional projects.
• Embedded Systems: Used in microcontroller-based systems requiring logical decision-making capabilities.
• Signal Processing: Functions as a critical component in signal manipulation and conditioning applications.
