SN74LS02N PDIP-14 Logic Gate IC

SN74LS02N PDIP-14 Logic Gate IC

SN74LS02N PDIP-14 Logic Gate IC Description

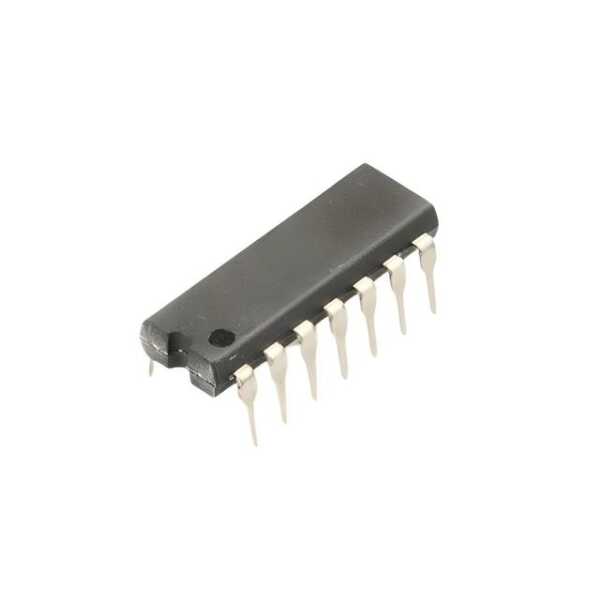

SN74LS02N PDIP-14 Logic Gate IC is a versatile logic integrated circuit designed to cater to the needs of modern electronic systems. Widely used in the electronics industry, this component is renowned for its efficiency in handling digital logic operations. It plays a crucial role in simplifying complex circuit designs, making it indispensable for engineers and electronics professionals seeking reliable performance in a compact form factor.

SN74LS02N PDIP-14 Logic Gate IC Features

• Quad 2-Input NOR Gates: Facilitates fundamental logic operations essential for digital circuits.
• Operating Voltage Range: Supports a range from 4.75V to 5.25V, ensuring compatibility with various systems.
• Low Power Consumption: Designed for energy efficiency, minimizing heat dissipation and power loss.
• High Noise Immunity: Ensures reliable performance in environments with electrical noise.
• TTL Compatible Inputs: Easily interfaces with TTL logic families, enhancing versatility.
• Compact PDIP-14 Package: Streamlined design for space-saving integration into electronic devices.
• Temperature Range: Operates effectively within industrial temperature ranges, ensuring reliability.

SN74LS02N PDIP-14 Logic Gate IC Applications

• Embedded Systems: Integral for implementing basic logic functions in microcontroller-driven applications.
• Signal Processing: Utilized in circuits requiring logic gate operations for signal modulation and control.
• Educational Projects: Ideal for academic environments where students learn about digital logic design.
