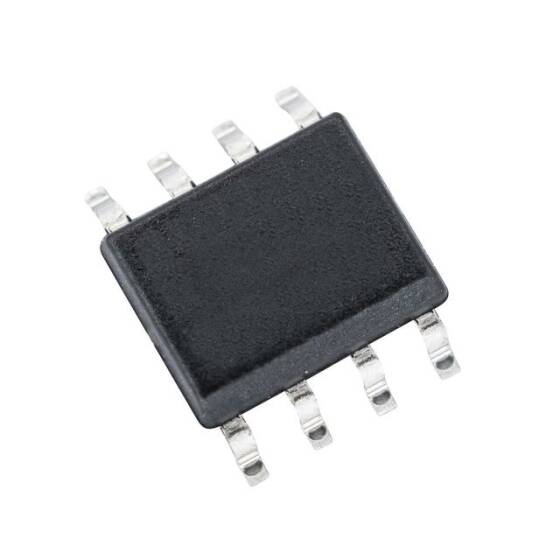

MSN4688 SOIC-8 N-CH 5A 52mΩ/P-CH 3.5A 100mΩ 60V 1.3W Dual N and P-Channel Mosfet

MSN4688 SOIC-8 N-CH 5A 52mΩ/P-CH 3.5A 100mΩ 60V 1.3W Dual N and P-Channel Mosfet

MSN4688 SOIC-8 N-CH 5A 52mΩ/P-CH 3.5A 100mΩ 60V 1.3W Dual N and P-Channel Mosfet Description

MSN4688 SOIC-8 N-CH 5A 52mOhm/P Kanal 3.5A 100mOhm 60V 1.3W Dual N and P Kanal Mosfet is a versatile semiconductor device integral to modern electronic systems. Designed to enhance power efficiency and control, this component is vital for engineers seeking reliable performance in high-current applications. Its dual N and P channel configuration offers balanced switching characteristics, making it suitable for a wide range of power management solutions.

MSN4688 SOIC-8 N-CH 5A 52mΩ/P-CH 3.5A 100mΩ 60V 1.3W Dual N and P-Channel Mosfet Features

• Package Type: SOIC-8, providing compactness and ease of integration in PCB designs.
• Channel Type: Dual N and P channels, ensuring versatile operation across various circuits.
• Drain Current: Supports up to 5A for N-channel and 3.5A for P-channel, accommodating high-power applications.
• On-Resistance: Low on-resistance of 52mOhm for N-channel and 100mOhm for P-channel, minimizing power loss.
• Breakdown Voltage: Rated at 60V, suitable for handling substantial voltage levels.
• Power Dissipation: Capable of dissipating 1.3W, enhancing thermal management.
• Switching Speed: Fast switching characteristics, ideal for high-frequency applications.

MSN4688 SOIC-8 N-CH 5A 52mΩ/P-CH 3.5A 100mΩ 60V 1.3W Dual N and P-Channel Mosfet Applications

• Power Supplies: Utilized in switch-mode power supplies for efficient energy conversion.
• Motor Control: Suitable for driving motors in industrial automation and consumer electronics.
• Battery Management: Essential in battery protection circuits, ensuring longevity and safety.
