MCP2515 CAN Bus Module TJA1050 Receiver SPI 51 Single Chip Routines

MCP2515 CAN Bus Module TJA1050 Receiver SPI 51 Single Chip Routines

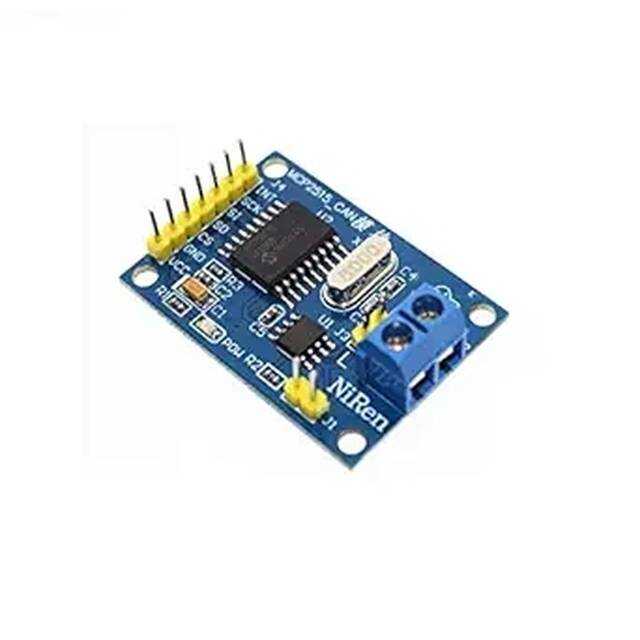

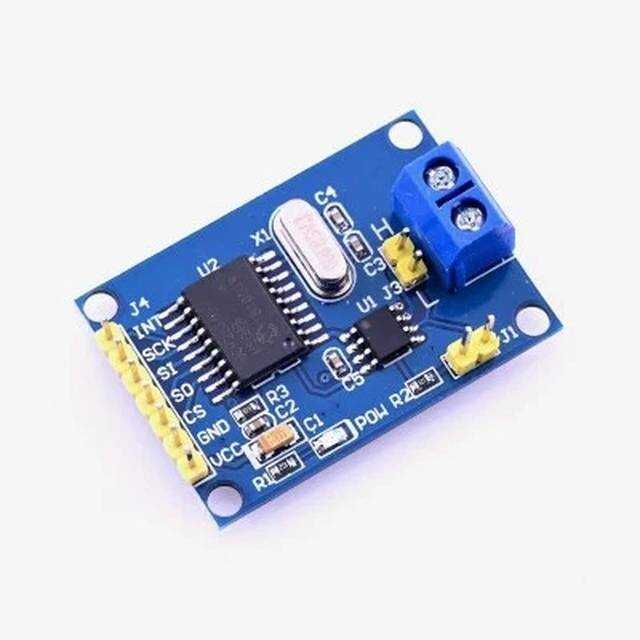

MCP2515 CAN Bus Module Description

The MCP2515 CAN Bus Module with TJA1050 Receiver is a versatile and reliable module designed for communication in automotive, industrial, and other embedded applications. It uses the SPI interface to communicate with microcontrollers and features a single chip solution for CAN bus management. Ideal for creating reliable communication networks in systems that require fast and secure data transmission, this module is compatible with most microcontrollers.

MCP2515 CAN Bus Module Features

• SPI Communication: Uses the SPI interface for easy integration with microcontrollers.
• TJA1050 Receiver: Equipped with a reliable CAN bus transceiver for stable data reception.
• High Speed: Supports fast data transmission and efficient communication.
• Single Chip Solution: Simplifies the design by using a single chip for both communication and reception.
• Wide Compatibility: Works with a wide range of microcontrollers, including Arduino and PIC.

MCP2515 CAN Bus Module Specifications

• Interface: SPI (Serial Peripheral Interface)
• Transceiver: TJA1050 CAN bus transceiver
• Supported Protocols: CAN 2.0 A/B
• Operating Voltage: 5V
• Speed: Up to 1 Mbps data transmission rate

MCP2515 CAN Bus Module Applications

• Automotive Systems: Ideal for in-vehicle networks and communication.
• Industrial Automation: Used in industrial control systems for data exchange.
• Embedded Projects: Suitable for embedded communication in various systems.
• IoT Applications: Perfect for IoT devices that require CAN bus communication.
