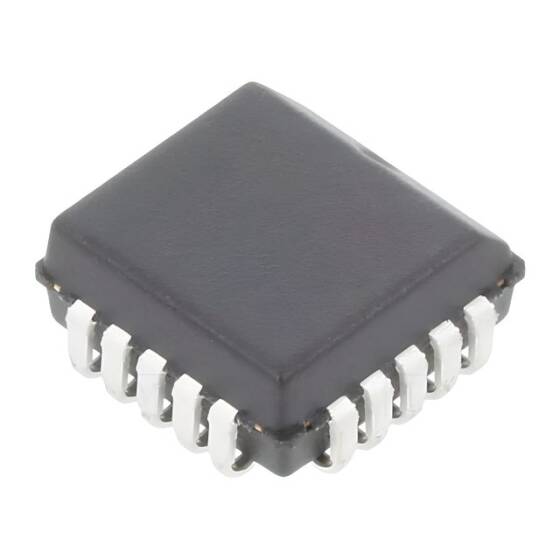

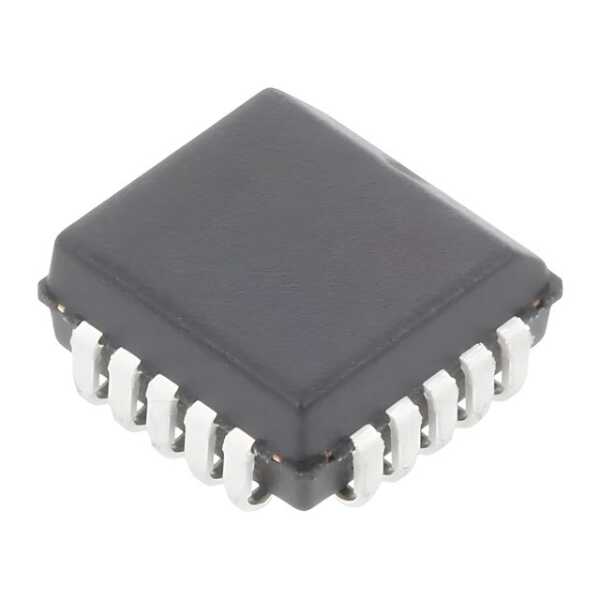

LM3914V PLCC-20 LED Lighting Driver IC

LM3914V PLCC-20 LED Lighting Driver IC

LM3914V PLCC-20 LED Lighting Driver IC Description

LM3914V PLCC-20 LED Lighting Driver IC is an essential component for engineers and designers seeking precision in LED displays. This high-performance Entegresi translates analog signals into a bar graph or dot display, making it ideal for a variety of applications in modern electronics.

LM3914V PLCC-20 LED Lighting Driver IC Features

• Display Driver Capability: Capable of driving up to 10 LEDs in dot or bar mode.
• Versatile Input: Accepts analog voltage inputs, directly translating them into visual output.
• Low Power Consumption: Efficient design ensures minimal power usage, crucial for battery-operated devices.
• Flexible Operation: Compatible with both digital and analog circuitry for seamless integration.
• Adjustable Brightness: Allows for manual adjustment of LED brightness levels.
• Compact Package: Housed in a PLCC-20 package for space-constrained applications.
• Temperature Range: Operates effectively within a wide temperature range suitable for industrial environments.

LM3914V PLCC-20 LED Lighting Driver IC Applications

• Battery Level Indicators: Accurately displays battery status in portable electronics.
• Audio Equipment: Used in visual audio signal level meters for professional audio systems.
• Industrial Control Panels: Provides a clear visual indication of process levels or statuses.
