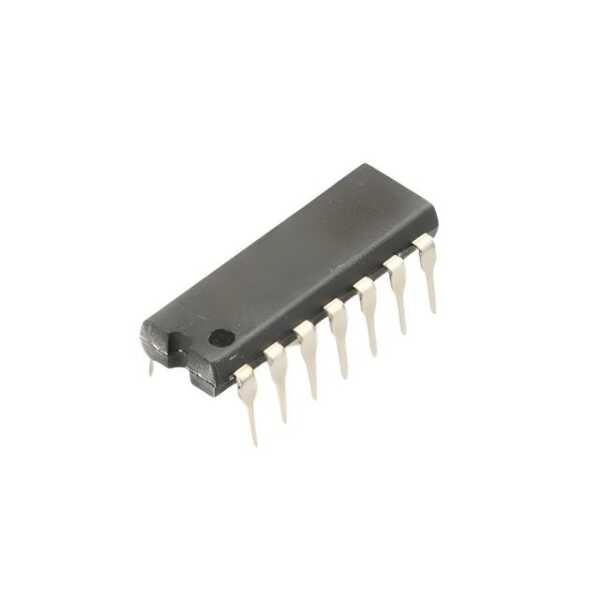

HD74LS13P PDIP-14 Logic IC

HD74LS13P PDIP-14 Logic IC

HD74LS13P PDIP-14 Logic IC Description

The HD74LS13P PDIP-14 Mantık Entegresi is a high-performance, dual 4-input positive-NAND Schmitt trigger designed with precision for use in digital electronics. It enhances processing reliability in logic circuits, providing engineers and developers a robust solution for modern electronic applications. With its compact PDIP-14 package, this logic IC is ideal for applications requiring space-saving designs and high noise immunity.

HD74LS13P PDIP-14 Logic IC Features

• Input Voltage Range: Broad input voltage range ensures compatibility with various digital systems.
• Schmitt Trigger Action: Provides hysteresis for noise suppression, improving signal stability.
• Low Power Consumption: Designed to minimize energy use, extending battery life in portable devices.
• High Noise Immunity: Superior resistance to electrical noise, ideal for industrial environments.
• Output Drive Capabilities: Capable of driving both high and low logic levels efficiently.
• Temperature Range: Operates reliably across a wide temperature spectrum, making it suitable for varied environments.
• Compact Design: With its compact form factor, it integrates seamlessly into tight board layouts.

HD74LS13P PDIP-14 Logic IC Applications

• Industrial Automation: Utilized in control systems and automation solutions requiring reliable logic processing.
• Consumer Electronics: Essential for the development of high-efficiency home appliances and gadgets.
• Data Processing: Applied in computing systems for error-free data manipulation and processing tasks.
