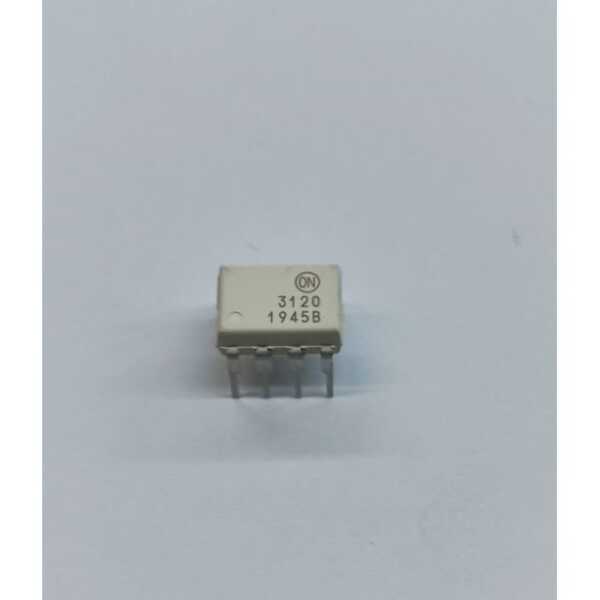

HCPL-3120 DIP-8 Logic Output Optocoupler

HCPL-3120 DIP-8 Logic Output Optocoupler

HCPL-3120 DIP-8 Logic Output Optocoupler Description

HCPL-3120 DIP-8 Logic Output Optocoupler is a high-performance optoelectronic device designed for seamless signal isolation in power electronics. Its industry significance lies in its ability to provide reliable logic level shifting with high voltage isolation, making it indispensable for engineers working in the field of power conversion and motor control systems.

HCPL-3120 DIP-8 Logic Output Optocoupler Features

• High Insulation Voltage: Offers insulation voltage up to [Value] kV, ensuring robust isolation between input and output.
• High Speed: Capable of operating at speeds up to [Value] Mbps, ideal for high-speed data transmission.
• Low Propagation Delay: Features a propagation delay of [Value] ns, delivering fast response times.
• Wide Operating Temperature Range: Functions efficiently within the range of [Value] °C to [Value] °C, suitable for harsh environments.
• Compact DIP-8 Package: The DIP-8 packaging offers easy integration into existing circuit boards.
• CMOS/TTL Compatible: Compatible with both CMOS and TTL logic families for versatile applications.
• Low Input Current: Designed with low input current requirements, enhancing energy efficiency.

HCPL-3120 DIP-8 Logic Output Optocoupler Applications

• Inverter Circuits: Utilized in inverter circuits for photovoltaic systems, ensuring effective isolation and signal transmission.
• Motor Drives: Employed in motor drive applications to achieve precise control and isolation in industrial automation.
• Switching Power Supplies: Integrated into switching power supplies to enhance performance and safety in power conversion processes.
