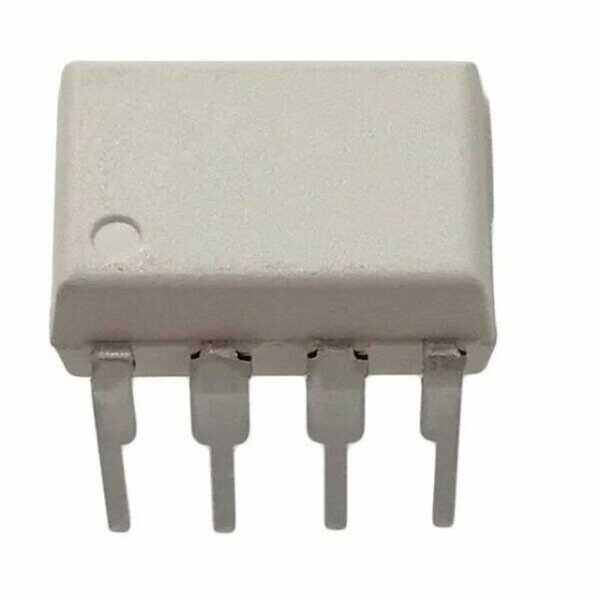

HCPL-3120-000E - (A3120) DIP-8 Logic Optokuplör is a high-performance, isolated interface designed for driving power transistors and IGBTs. This device is crucial in industrial automation and power supply systems, ensuring reliable signal isolation and protection against high voltages. Its compact DIP-8 package offers seamless integration into various circuit designs, enhancing system efficiency and safety.
HCPL-3120-000E - (A3120) DIP-8 Logic Output Optocoupler Features
- High Output Current Capability: Capable of providing up to 2.5 A of peak output current.
- Wide Operating Temperature Range: Ensures reliable performance from -40°C to +100°C.
- High Insulation Voltage: Provides up to 3750 Vrms for 1 minute.
- Fast Switching Times: Reduces propagation delay, enhancing overall system response.
- Compact DIP-8 Package: Facilitates easy integration into space-constrained designs.
- Low Input Current: Minimizes power consumption during operation.
- UL Recognized: Meets industry safety standards for electrical isolation.
HCPL-3120-000E - (A3120) DIP-8 Logic Output Optocoupler Applications
- Industrial Motor Drives: Used for controlling and isolating power transistors in motor control systems.
- Switch Mode Power Supplies: Ensures efficient signal isolation and protection in power supply circuits.
- Solar Inverters: Provides isolation and drive capabilities to IGBTs in solar inverter applications.
