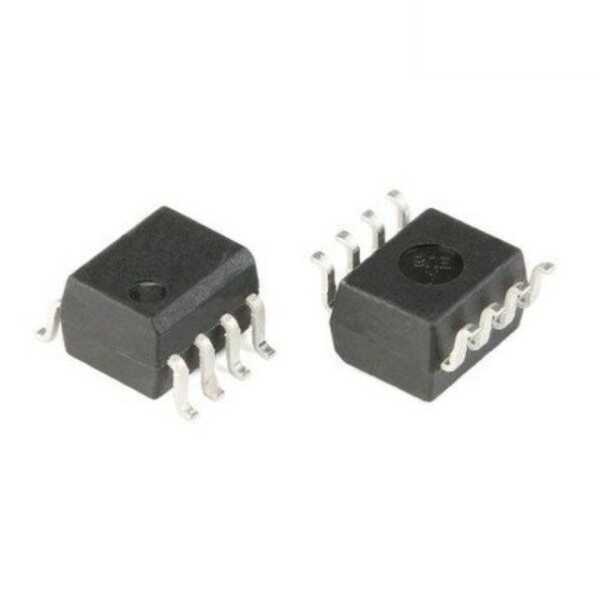

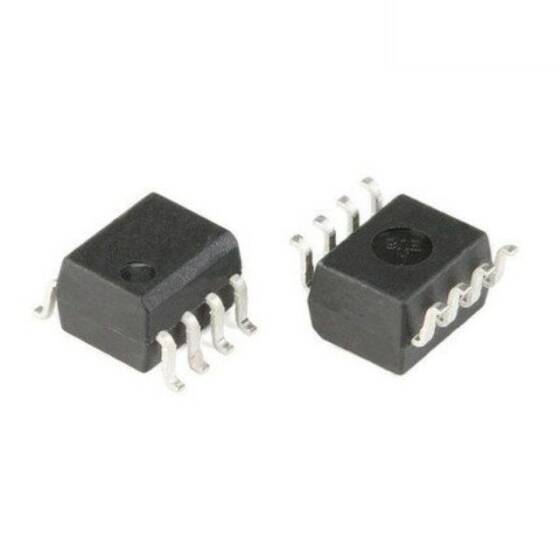

HCPL-0302-560E - (302V) SMD-8 Logic Output Optocoupler Description

HCPL-0302-560E - (302V) SMD-8 Logic Optokuplör is a high-performance, small-footprint optocoupler designed for seamless electrical isolation in digital circuits. Ideal for engineers seeking reliable data transmission in challenging environments, this component excels in bridging communication between disparate voltage levels while ensuring robust signal integrity. The HCPL-0302-560E sets a standard in the electronics industry for its durability and efficiency, making it indispensable in modern circuit design.

HCPL-0302-560E - (302V) SMD-8 Logic Output Optocoupler Features

• High Isolation Voltage: Provides up to 5000 Vrms for enhanced safety and reliability.
• Compact SMD-8 Package: Space-saving design suitable for densely packed PCBs.
• Wide Operating Temperature Range: Ensures performance in environments from -40°C to 85°C.
• Fast Switching Speeds: Ideal for high-speed digital applications with low propagation delay.
• Low Input Current: Optimizes power efficiency while maintaining functionality.
• Enhanced Noise Immunity: Reduces susceptibility to electromagnetic interference.
• RoHS Compliant: Environmentally friendly, meeting global safety standards.

HCPL-0302-560E - (302V) SMD-8 Logic Output Optocoupler Applications

• Industrial Automation: Facilitates safe signal transmission in machinery and process controls.
• Consumer Electronics: Essential for isolating different circuit sections in home appliances.
• Telecommunications: Ensures reliable data transfer in networking hardware and communication devices.
