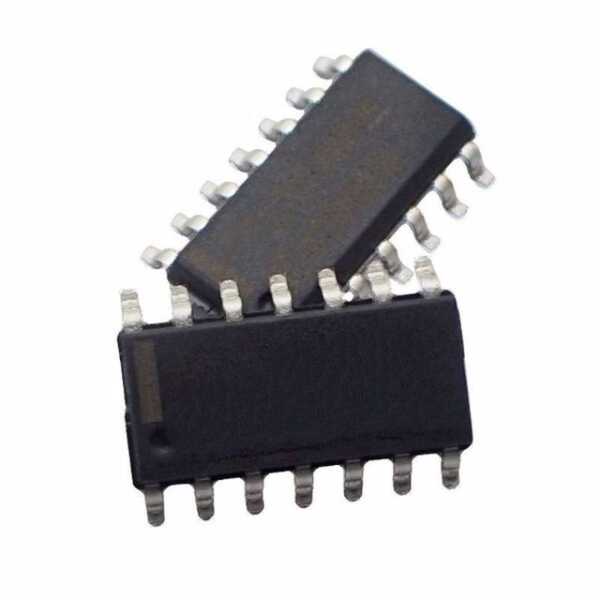

CD4093 - (HEF4093BT) SO-14 Logic IC is a highly reliable quad 2-input NAND Schmitt trigger designed to improve signal integrity in digital circuits. This versatile logic gate is essential for filtering noise and shaping signal transitions, making it a critical component in modern electronics. Engineers and designers across various industries rely on its robustness and performance to ensure optimal function in their designs.
CD4093 - (HEF4093BT) SO-14 Logic IC Features
- Feature 1: Quad 2-input NAND Schmitt trigger
- Feature 2: Wide supply voltage range of 3V to 15V
- Feature 3: High noise immunity with hysteresis
- Feature 4: Low power consumption with CMOS technology
- Feature 5: Output drive capability to connect multiple inputs
- Feature 6: Direct interfacing with TTL devices
- Feature 7: SO-14 package for compact circuit design
CD4093 - (HEF4093BT) SO-14 Logic IC Applications
- Application 1: Signal conditioning in automotive electronics
- Application 2: Pulse shaping in communication systems
- Application 3: Noise filtering in industrial control systems
