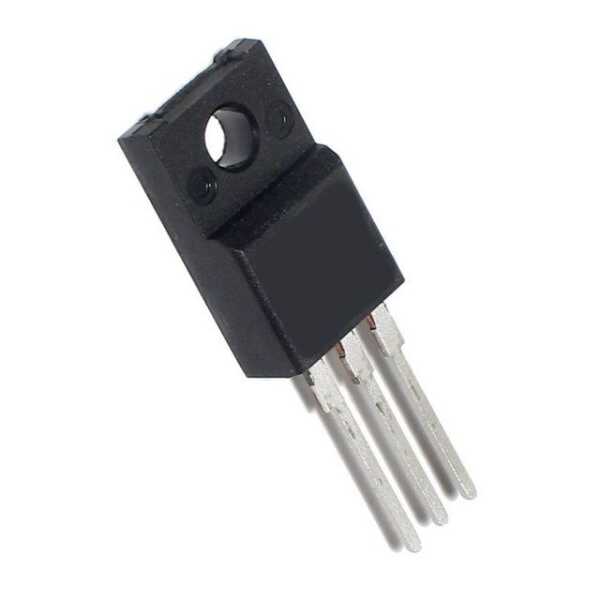

2SK3118 TO-220F N-Channel Mosfet Transistor

2SK3118 TO-220F N-Channel Mosfet Transistor

2SK3118 TO-220F N-Channel Mosfet Transistor Description

2SK3118 TO-220F N-Channel Mosfet Transistor is a critical component in modern electronic circuits, offering excellent performance in switching and amplification. As part of the N channel power Mosfet family, the 2SK3118 is encapsulated in the TO-220F package, providing a perfect solution for space-constrained applications while ensuring efficient thermal management and robust electrical performance. This transistor is widely adopted in the electronics industry due to its reliability and versatility.

2SK3118 TO-220F N-Channel Mosfet Transistor Features

• Drain-Source Voltage (V_DS): 600V
• Continuous Drain Current (I_D): 14A
• Gate-Source Voltage (V_GS): ±30V
• Power Dissipation (P_D): 45W
• R_DS(on) (Max): 0.44Ω
• Threshold Voltage (V_GS(th)): 2-4V
• Operating Temperature Range: -55°C to 150°C

2SK3118 TO-220F N-Channel Mosfet Transistor Applications

• Switching Power Supplies: Ideal for use in power conversion applications where high efficiency and reliability are paramount.
• Motor Control: Suitable for driving motors in industrial and automotive applications, ensuring smooth operation and control.
• Inverters: Used in inverter circuits for renewable energy systems, providing efficient power conversion from DC to AC.
