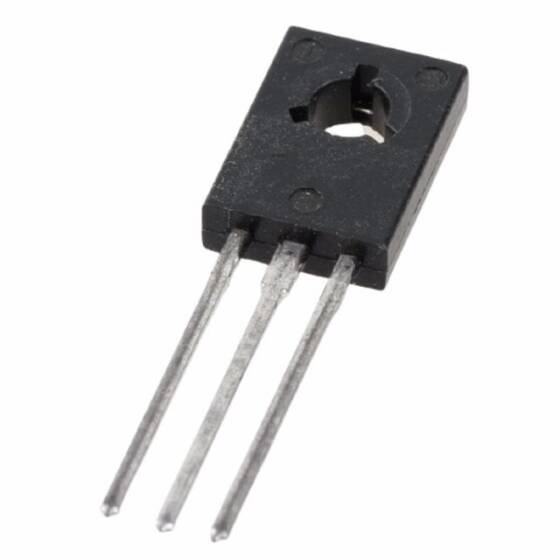

2SD1684 TO-126 1.5A 100V 10W NPN Transistor

2SD1684 TO-126 1.5A 100V 10W NPN Transistor

2SD1684 TO-126 1.5A 100V 10W NPN Transistor Description

2SD1684 TO-126 1.5A 100V 10W NPN Transistör is a high-performance semiconductor device designed to drive medium power loads in various electronic circuits. Its robust construction makes it ideal for demanding applications, providing reliable switching and amplification capabilities. With a focus on efficiency and durability, this transistor is a staple component for engineers and designers working in the electronics industry.

2SD1684 TO-126 1.5A 100V 10W NPN Transistor Features

• Package Type: TO-126 package for efficient heat dissipation and compact design.
• Collector Current: Capable of handling up to 1.5A, suitable for medium power applications.
• Voltage Rating: Supports a maximum collector-emitter voltage of 100V, offering high voltage tolerance.
• Power Dissipation: Maximum power dissipation of 10W, ensuring stable performance under load.
• Transition Frequency: High transition frequency for fast switching applications.
• Gain Bandwidth Product: Optimized for high frequency and gain stability.
• Temperature Range: Wide operating temperature range for versatile application use.

2SD1684 TO-126 1.5A 100V 10W NPN Transistor Applications

• Audio Amplifiers: Used in audio amplification circuits to enhance sound quality and output power.
• Switching Regulators: Ideal for use in DC-DC converters and switching power supplies.
• Motor Drivers: Suitable for driving motors in robotic and industrial applications, providing precise control.
