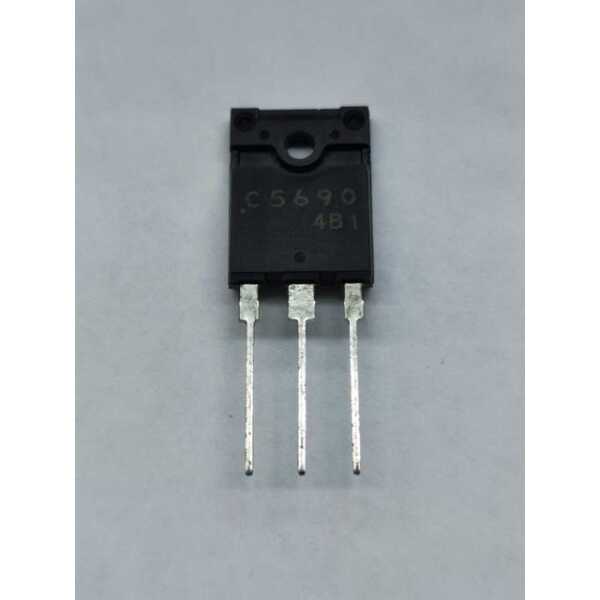

2SC5690 TO-3PF 1500V 15A 85W NPN Transistor

2SC5690 TO-3PF 1500V 15A 85W NPN Transistor

2SC5690 TO-3PF 1500V 15A 85W NPN Transistor Description

2SC5690 TO-3PF 1500V 15A 85W NPN Transistor is a high-performance NPN transistor designed to meet the rigorous demands of industrial and commercial applications. With its robust TO-3PF package, it offers superior thermal and electrical characteristics, making it an essential component for high-voltage and high-current circuits. This transistor is ideal for engineers looking to enhance system efficiency and reliability in power electronics.

2SC5690 TO-3PF 1500V 15A 85W NPN Transistor Features

• High Voltage Tolerance: Capable of withstanding up to 1500V, ensuring stability in high-voltage applications.
• Current Handling: Designed to handle a collector current of 15A, suitable for demanding power circuits.
• Power Dissipation: Supports a power dissipation of 85W, offering excellent thermal management.
• Durable Package: Encased in a TO-3PF package for enhanced mechanical strength and heat dissipation.
• High-Speed Switching: Optimized for fast switching speeds, improving overall circuit performance.
• Low Saturation Voltage: Minimizes power loss, increasing the efficiency of power conversion devices.
• Reliable Performance: Engineered for consistent performance in variable environmental conditions.

2SC5690 TO-3PF 1500V 15A 85W NPN Transistor Applications

• Power Supply Units: Ideal for use in switch-mode power supplies and inverters, where efficiency and reliability are paramount.
• Motor Drives: Suitable for industrial motor control applications, providing precise current control and high efficiency.
• Audio Amplifiers: Utilized in high-power audio amplifiers to deliver clean and robust audio output.
