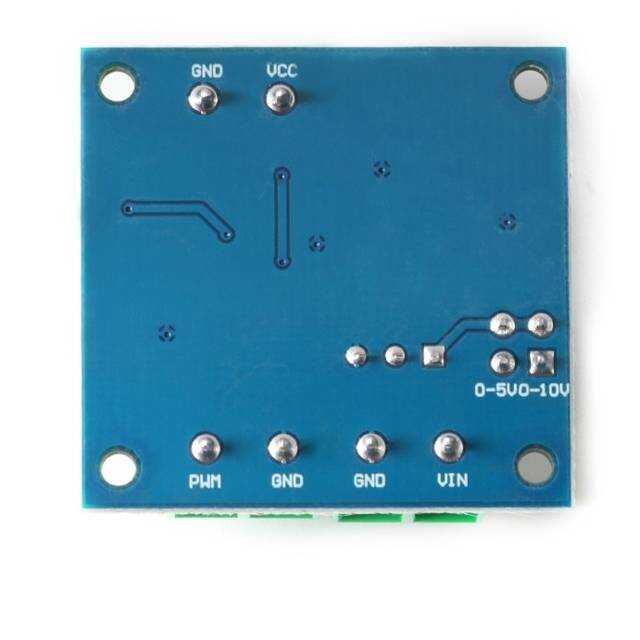

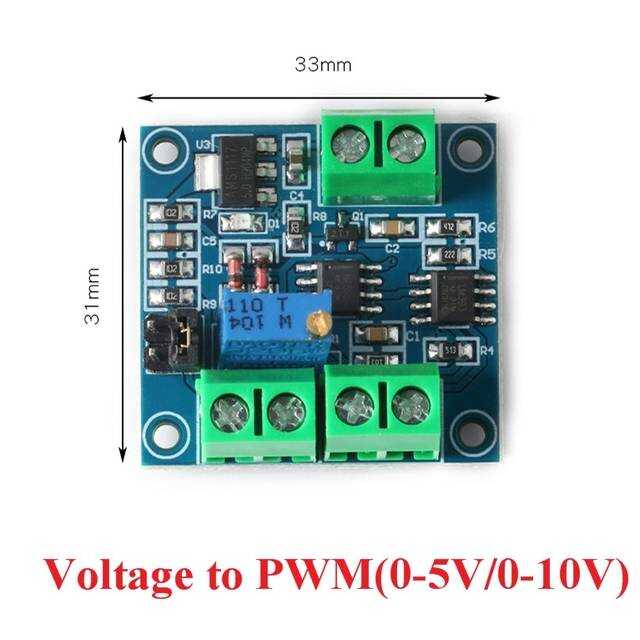

The Voltage to PWM Converter Module is designed to convert analog voltage signals (0-5V or 0-10V) into corresponding PWM signals with a duty cycle range of 0%-100%. This module is ideal for industrial automation, motor control, and IoT applications requiring precise digital signal control from analog inputs.
- Dual Input Range: Supports 0-5V and 0-10V voltage inputs.
- Wide PWM Output Range: Outputs PWM signals with 0%-100% duty cycle.
- Adjustable Scaling: Fine-tune the conversion to match specific requirements.
- High Precision: Ensures accurate and stable conversion.
- Compact Design: Easily integrates into embedded systems.
Voltage to PWM Converter Module Specifications
- Input Voltage: 0-5V or 0-10V DC
- Output Signal: PWM (0%-100% duty cycle)
- Operating Voltage: 12V to 24V DC
- Accuracy: ±1%
- Dimensions: 40mm x 25mm x 10mm
Voltage to PWM Converter Module Applications
- Motor Speed Control: Convert analog signals to PWM for motor drivers.
- Industrial Automation: Interface analog sensors with digital controllers.
- IoT Systems: Enable analog-to-digital signal conversion for smart devices.
- DIY Electronics: Build custom PWM signal generators.
- Educational Tools: Teach analog-to-PWM conversion principles.
