UGN3503UA - (503) TO-92S Analog Position Sensor Description

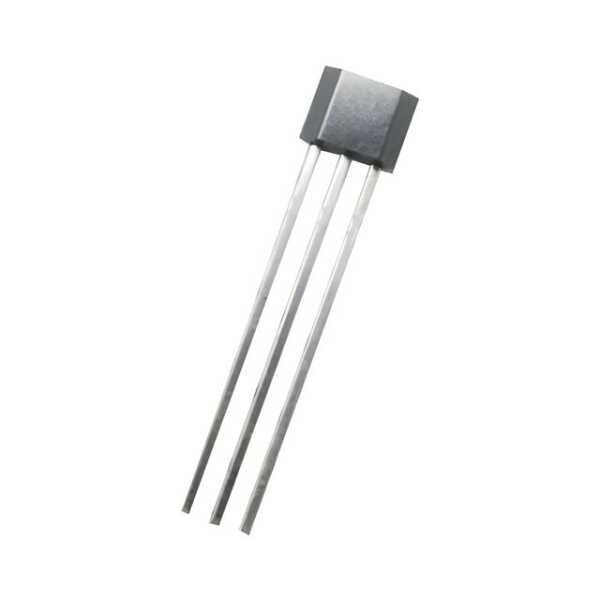

UGN3503UA - (503) TO-92S Analog Position Sensor is a versatile magnetic sensor designed for precision applications in dynamic environments. Its compact (503) TO-92S package ensures easy integration into various electronic systems. As an Analog sensor, it provides real-time position data, making it an essential component for engineers looking to enhance the accuracy and reliability of their systems.

UGN3503UA - (503) TO-92S Analog Position Sensor Features

• Hall-Effect Technology: Utilizes Hall-effect technology for precise position sensing.
• Linear Output: Provides a linear Analog output proportional to magnetic flux density.
• Wide Operating Voltage: Compatible with a broad range of supply voltages, enhancing flexibility.
• Temperature Stability: Maintains accuracy across varying temperature ranges.
• Compact Design: The TO-92S package facilitates easy PCB mounting.
• Low Power Consumption: Optimized for energy-efficient applications.
• High Sensitivity: Detects subtle changes in magnetic fields for enhanced precision.

UGN3503UA - (503) TO-92S Analog Position Sensor Applications

• Automotive Systems: Used in throttle position sensing and pedal position monitoring.
• Industrial Automation: Ideal for robotics and conveyor belt systems needing precise movement detection.
• Consumer Electronics: Applied in joysticks and other interface devices for accurate position feedback.
