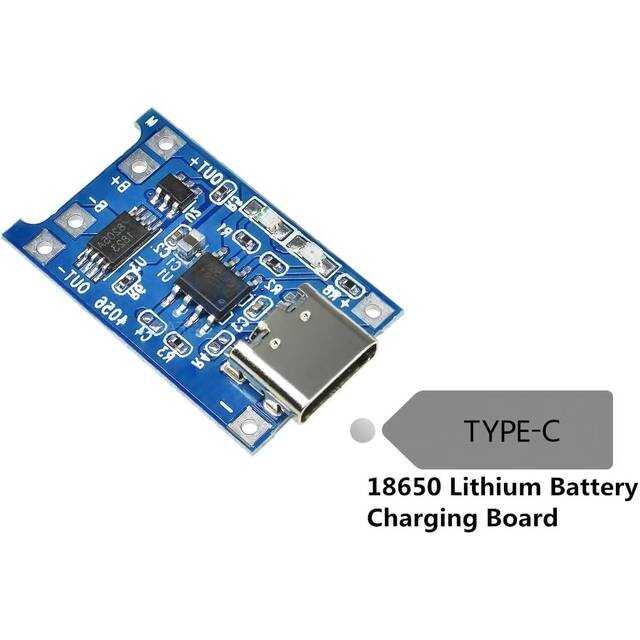

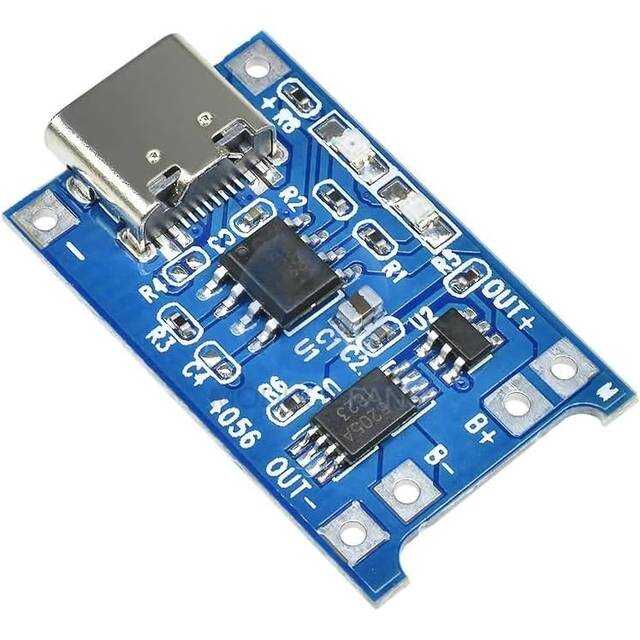

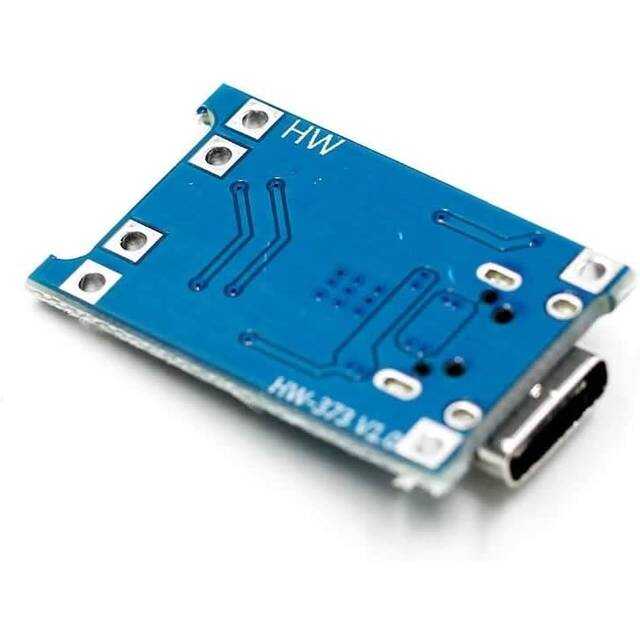

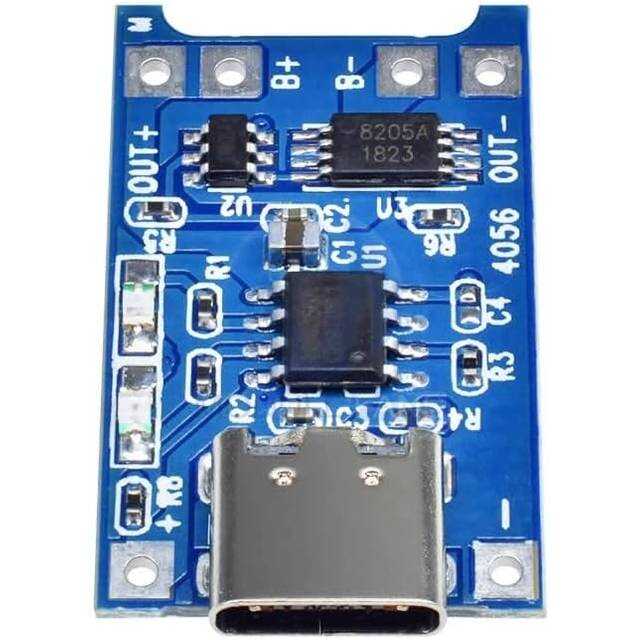

The TP4056 TC4056 1A Lipo Battery Charging Board Type-C is a modern charging solution for single-cell lithium-ion or lithium-polymer (LiPo) batteries. Equipped with a Type-C interface, it offers reversible connectivity and includes current protection features for enhanced safety and reliability.
- Type-C Interface: Provides convenient and reversible USB connectivity.
- Integrated TP4056 Chip: Efficiently charges lithium-ion batteries.
- Advanced Protection: Includes overcurrent, overcharge, and short-circuit protection.

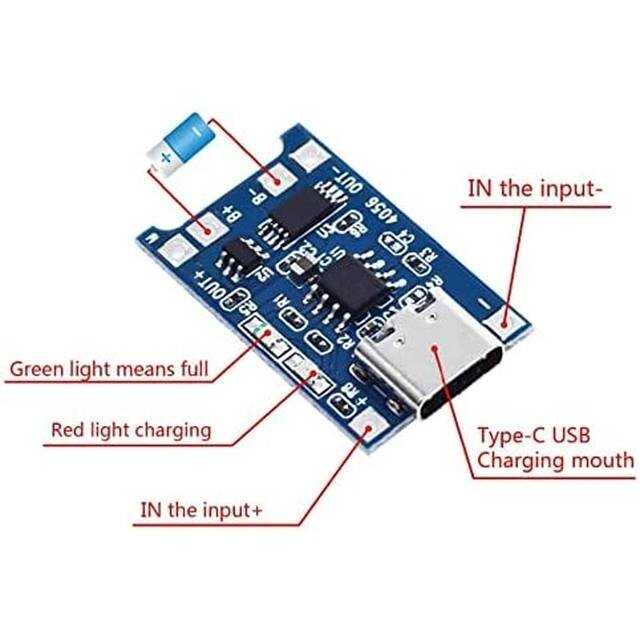

- LED Indicators: Displays real-time charging status.
- Compact and Durable: Built for portable and robust applications.
TP4056 1A Lipo Battery Charging Board Type-C Specifications
- Chipset: TP4056 / TC4056
- Input Voltage: 4.5V to 5.5V DC (via Type-C USB)
- Charging Current: 1A (maximum)
- Battery Type: Single-cell lithium-ion or LiPo

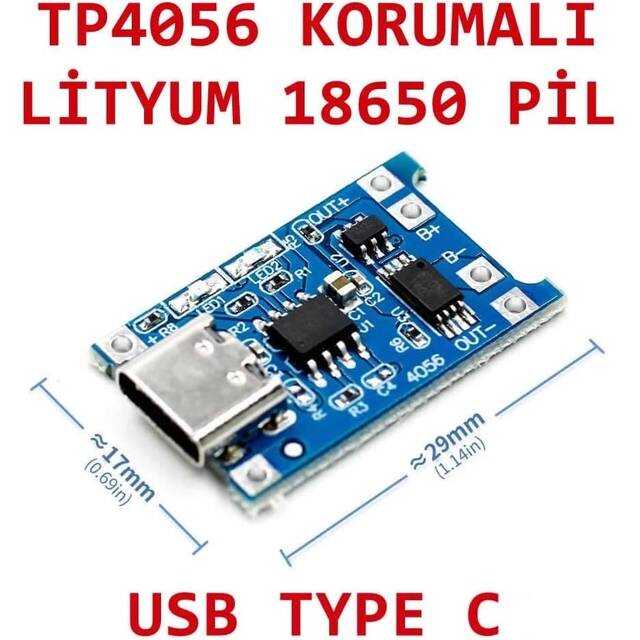

- Dimensions: 25mm x 19mm x 8mm
TP4056 1A Lipo Battery Charging Board Type-C Applications
- Modern Electronics: Add Type-C charging to portable devices.
- IoT Systems: Integrate safe charging for smart devices.
- DIY Projects: Create advanced rechargeable systems.
- Battery Maintenance: Recharge lithium-ion batteries with safety features.
- Educational Use: Learn about Type-C charging technology.
