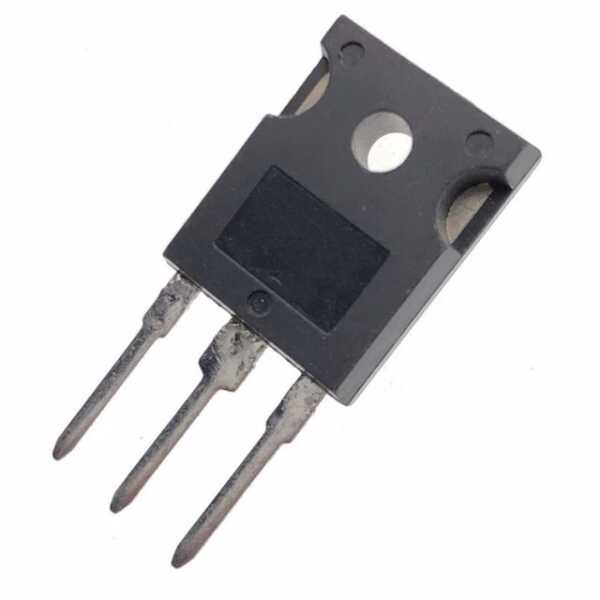

STGW40H120DF2 TO-247 40A 1200V 468W IGBT Transistor

STGW40H120DF2 TO-247 40A 1200V 468W IGBT Transistor

STGW40H120DF2 TO-247 40A 1200V 468W IGBT Transistor Description

The STGW40H120DF2 in a TO-247 package is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed to meet the rigorous demands of modern power electronics. With a current rating of 40A, a voltage rating of 1200V, and a robust power dissipation capacity of 468W, it is an essential component for engineers seeking reliable and efficient solutions for high-power applications.

STGW40H120DF2 TO-247 40A 1200V 468W IGBT Transistor Features

• Low On-State Voltage Drop: Minimizes power loss and increases efficiency in high-current applications.
• High-Speed Switching: Enables quick response times, crucial for dynamic power systems.
• Rugged Construction: Ensures durability and reliability under harsh operating conditions.
• Soft Switching Capability: Reduces electromagnetic interference (EMI) and enhances system stability.
• Short Circuit Withstand Time: Provides superior protection against unexpected overloads.
• Optimized Thermal Performance: Enhances heat dissipation to maintain safe operating temperatures.
• Robust Insulation Properties: Ensures safe and effective isolation in circuit designs.

STGW40H120DF2 TO-247 40A 1200V 468W IGBT Transistor Applications

• Industrial Motor Drives: Powers motors with high efficiency, crucial for industrial automation and control systems.
• Renewable Energy Systems: Integral in solar inverters and wind turbine converters, supporting sustainable energy solutions.
• Uninterruptible Power Supplies (UPS): Delivers reliable power backup, essential for critical infrastructure and data centers.
