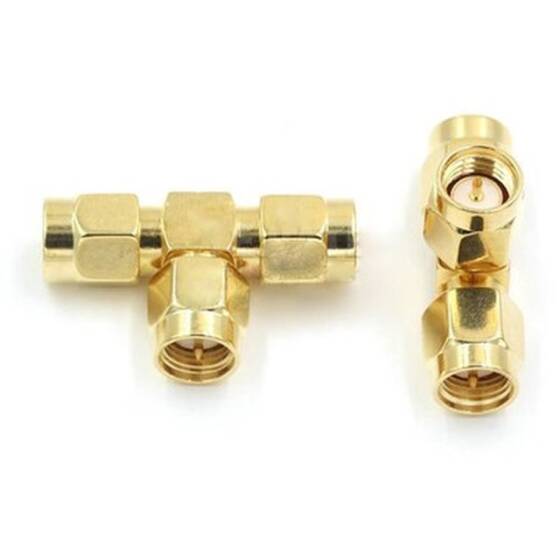

SMA-JJJ Coaxial Connector

SMA-JJJ Coaxial Connector

SMA-JJJ Coaxial Connector Description

SMA-JJJ Coaxial Connector is the pinnacle of precision engineering in the world of high-frequency RF applications. This robust and reliable connector is designed to meet the demanding needs of modern communication systems. Featuring a gold-plated finish for optimal conductivity, the SMA-JJJ ensures minimal signal loss and maximum performance. Ideal for use with a wide range of coaxial cables, this connector provides seamless connectivity in diverse environments, from commercial broadcasting to high-end test equipment.

SMA-JJJ Coaxial Connector Features

• Frequency Range: DC to 18 GHz
• Impedance: 50 Ohms
• VSWR: 1.15:1 max to 12.4 GHz
• Material: Stainless Steel with Gold Plating
• Temperature Range: -65°C to +165°C
• Durability: Over 500 mating cycles
• Interface Standards: Meets MIL-STD-348

SMA-JJJ Coaxial Connector Applications

• Telecommunications: Perfect for connecting antennas and base stations in mobile networks
• Military Communication Systems: Ensures secure and reliable connections in tactical environments
• Test and Measurement Equipment: Ideal for use in high-precision testing devices that require stable RF connections
