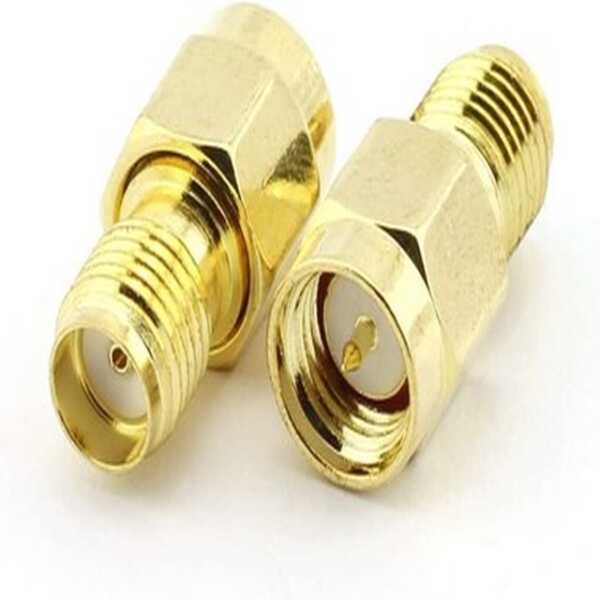

SMA-JK Coaxial Connector

SMA-JK Coaxial Connector

SMA-JK Coaxial Connector Description

SMA-JK Coaxial Connector: Elevate your electronic connections with the precision-engineered SMA-JK Coaxial Connector. Designed with superior performance in mind, this connector offers exceptional reliability and efficiency for a wide range of applications. Whether you’re enhancing your communication systems or upgrading your RF components, the SMA-JK Coaxial Connector ensures seamless connectivity. Its robust design and high-quality materials support optimal signal transmission, making it an indispensable component for any technical setup.

SMA-JK Coaxial Connector Features

• Frequency Range: DC to 18 GHz
• Impedance: 50 Ohms nominal
• VSWR: 1.20:1 max. up to 12.4 GHz
• Connector Type: Plug with Jack interface
• Material: Gold-plated brass for corrosion resistance
• Temperature Range: -65°C to +165°C
• Durability: Over 500 mating cycles

SMA-JK Coaxial Connector Applications

• Telecommunications: Ideal for improving signal integrity in mobile and base station antennas
• Aerospace: Suitable for use in satellite and radar systems where high-frequency performance is critical
• Test and Measurement: Essential for precise measurements in RF and microwave testing equipment
