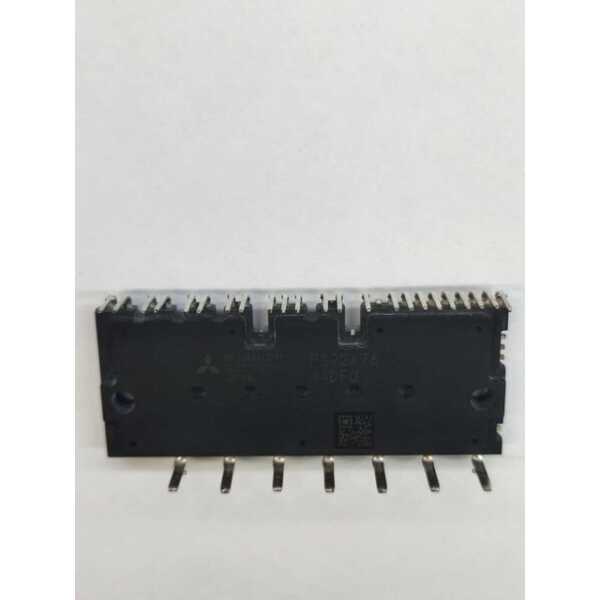

PS22A76 25A 1200V IPM IGBT Module Description

The PS22A76 is a cutting-edge power module designed for optimal efficiency and reliability in high-demand electrical applications. With a current capacity of 25A and a voltage rating of 1200V, this IPM (Intelligent Power Module) integrates the IGBT technology to offer superior performance in industrial and commercial systems. This product is pivotal for engineers seeking innovative solutions for power conversion and management.

PS22A76 25A 1200V IPM IGBT Module Features

• High Voltage Capability: The module supports up to 1200V, making it suitable for a wide range of high-voltage applications.
• Current Rating: It can handle up to 25A of current, ensuring robust performance under heavy loads.
• Integrated Protection: Built-in protection features guard against over-temperature, over-current, and short-circuit conditions.
• Thermal Management: Advanced thermal design for efficient heat dissipation, enhancing durability and lifespan.
• Compact Design: Offers a space-saving solution ideal for compact systems.
• Easy Integration: Designed for seamless integration into existing systems.
• High Switching Speed: Enables rapid switching for efficient power conversion.

PS22A76 25A 1200V IPM IGBT Module Applications

• Industrial Motor Drives: Enhances performance and efficiency in industrial motor control systems.
• Renewable Energy Systems: Ideal for use in solar and wind energy converters, optimizing power conversion.
• HVAC Systems: Provides reliable power management in heating, ventilation, and air conditioning applications.
