NE555 + CD4017 Red Blue Double Color Flashing Lights Board DIY Kit Description

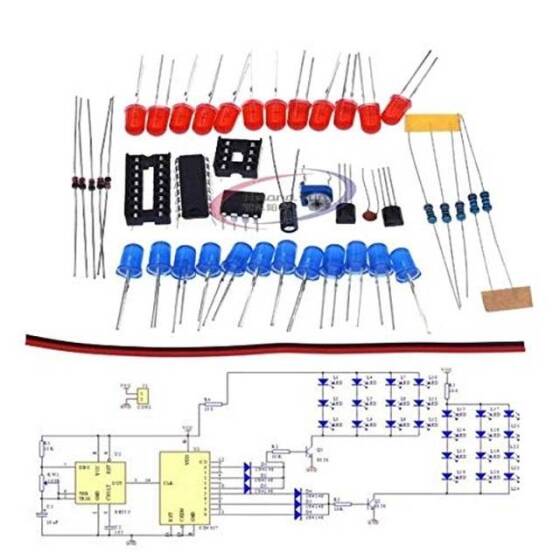

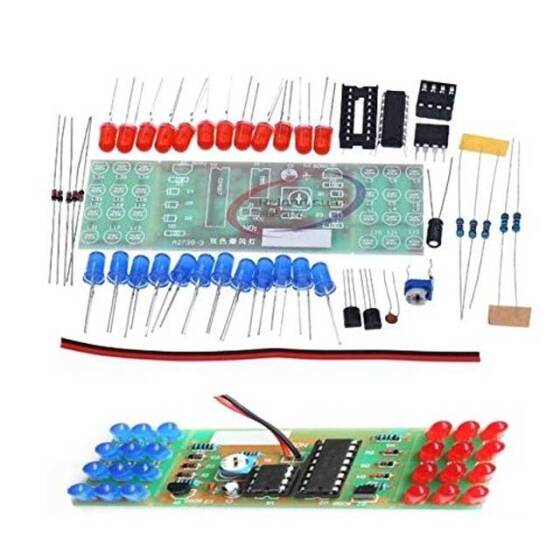

The NE555 + CD4017 Red Blue Double Color Flashing Lights Board DIY Kit combines the NE555 timer IC and CD4017 decade counter IC to create a flashing light effect using red and blue LEDs. This kit allows users to build a dynamic flashing light display that alternates between red and blue, creating a visually striking effect. Ideal for beginners and hobbyists, this DIY kit provides a great learning experience in electronics and circuit design while also creating a fun and customizable light display for various projects and applications.

NE555 + CD4017 Flashing Lights Kit Features

• Red and Blue LEDs: Uses red and blue LEDs to create a colorful flashing light effect.
• NE555 Timer IC: The NE555 timer controls the flashing sequence, providing adjustable timing and pattern control.
• CD4017 IC: The CD4017 IC is used to drive the LEDs, alternating between red and blue flashes.
• Fun DIY Project: A hands-on project to learn about timers, counters, and LED driving circuits.

NE555 + CD4017 Flashing Lights Kit Specifications

• ICs Used: NE555 timer and CD4017 decade counter
• LED Colors: Red and Blue LEDs
• Power Supply: 5V DC
• Effect: Alternating flashing red and blue LEDs

NE555 + CD4017 Flashing Lights Kit Applications

• Event Decorations: Perfect for creating dynamic, colorful light displays at parties or events.
• DIY Lighting Projects: Ideal for learning about electronics while building fun and customizable lighting systems.
• Educational Kits: Great for teaching students about timing circuits, counters, and LED displays.
