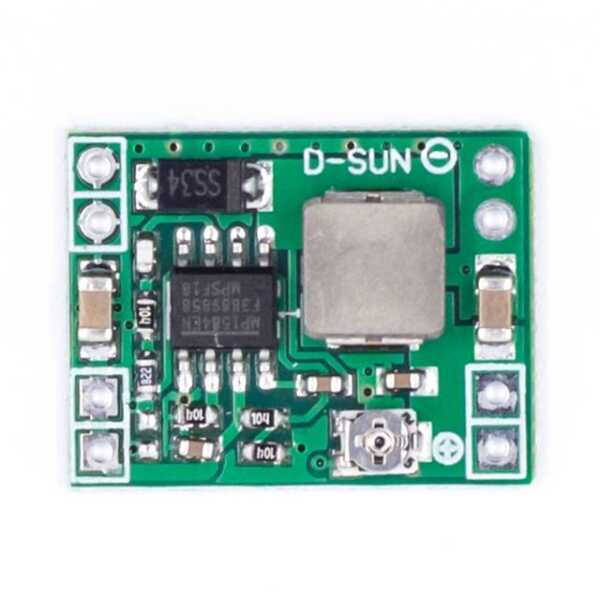

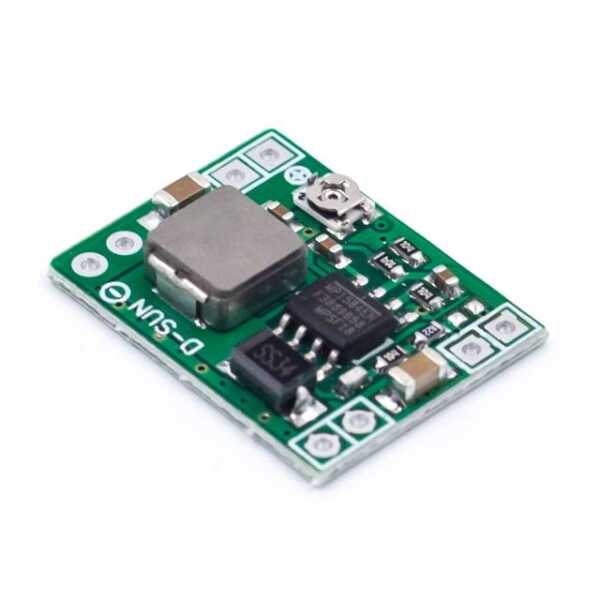

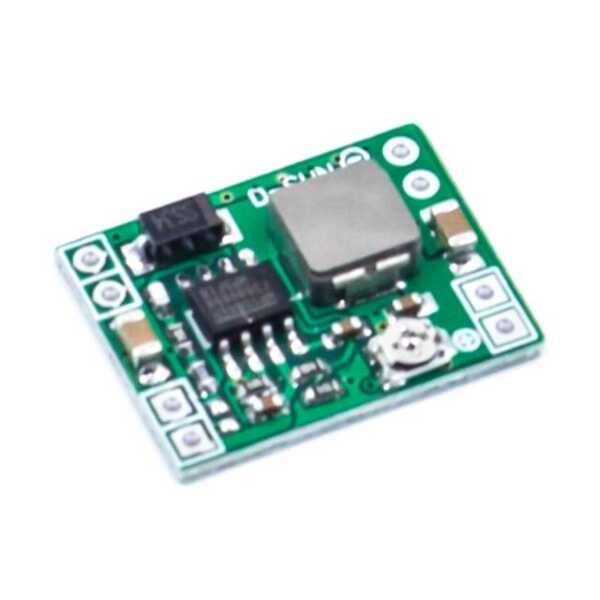

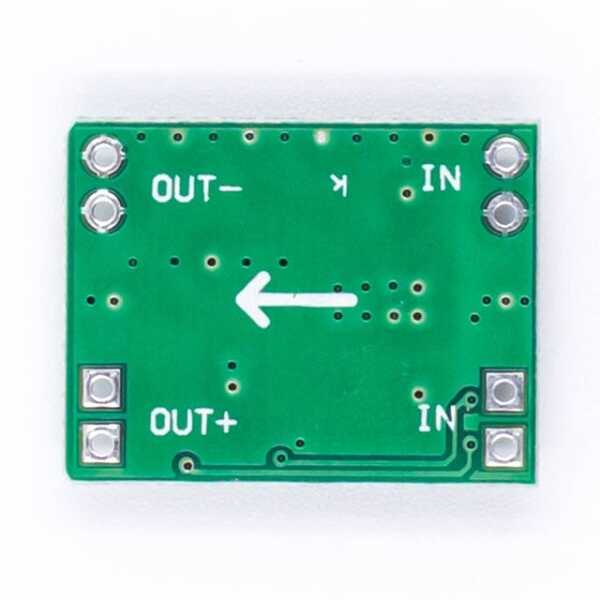

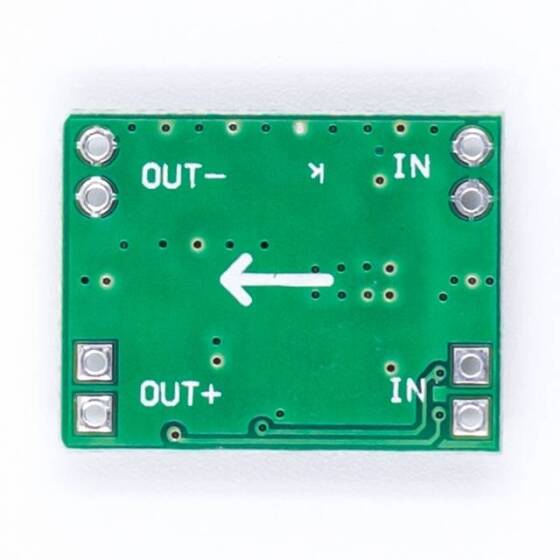

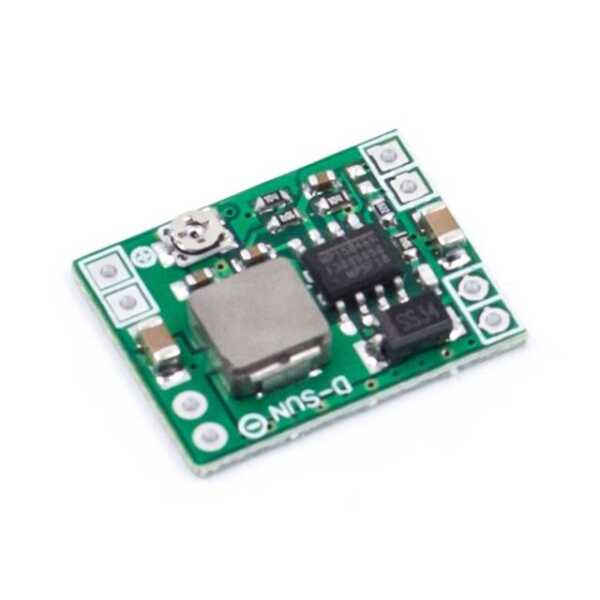

The MP1584EN Mini DC-DC Converter is a compact and efficient power supply module that steps down higher voltages to stable lower voltages. Supporting 3A output, it is perfect for powering devices with a wide input voltage range of 6V to 24V and adjustable output voltages such as 12V, 9V, 5V, and 3V. This module is ideal for powering embedded systems, DIY electronics, and mobile phone chargers.
- Wide Input Voltage Range: Accepts input voltages between 6V and 24V.
- Adjustable Output Voltage: Supports 12V, 9V, 5V, and 3V output, adjustable via a potentiometer.
- High Efficiency: Up to 92% efficiency for minimal energy loss.
- Compact Design: Small form factor suitable for integration into space-limited projects.
MP1584EN Specifications
- Output Current: 3A (Max)
- Output Voltage: Adjustable from 3V to 12V
- Efficiency: Up to 92%
- Input Voltage: 6V to 24V DC
MP1584EN Applications
- DIY Electronics: Ideal for powering low-voltage projects from a higher-voltage power source.
- Mobile Phone Chargers: Use in car USB chargers or portable charging stations.
- Embedded Systems: Provide power to microcontroller-based systems requiring a stable 5V or 12V supply.
