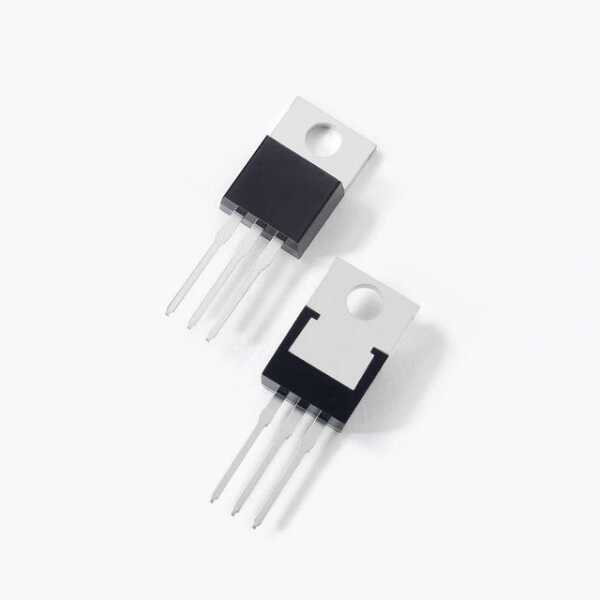

MJE13009 - (J13009-2) TO-220 12A 700V 100W NPN Transistor

MJE13009 - (J13009-2) TO-220 12A 700V 100W NPN Transistor

MJE13009 - (J13009-2) TO-220 12A 700V 100W NPN Transistor Description

MJE13009 - (J13009-2) TO-220 12A 700V 100W NPN Transistör is a high-performance semiconductor device designed to meet the demanding requirements of modern electronics. This robust NPN transistor excels in high-voltage and high-current applications, making it a staple in the power electronics industry. Engineered for reliability and efficiency, it provides exceptional switching speed and thermal stability, ideal for engineers developing advanced circuits and power management systems.

MJE13009 - (J13009-2) TO-220 12A 700V 100W NPN Transistor Features

• Maximum Collector Current (Ic): 12A, enabling high current load management
• Collector-Emitter Voltage (Vceo): 700V, suitable for high-voltage applications
• Power Dissipation (Pd): 100W, provides excellent power handling capabilities
• Package Type: TO-220, ensures easy mounting and heat dissipation
• High Switching Speed: Optimized for rapid transitions in digital circuits
• Thermal Resistance: Low thermal resistance for enhanced performance
• Robust Construction: Designed for long-lasting durability in industrial environments

MJE13009 - (J13009-2) TO-220 12A 700V 100W NPN Transistor Applications

• Switching Power Supplies: Ideal for use in SMPS circuits due to its high efficiency and reliability
• Motor Control: Utilized in controlling motors in industrial and consumer electronics
• Inverter Circuits: Suitable for use in inverter design for renewable energy systems
