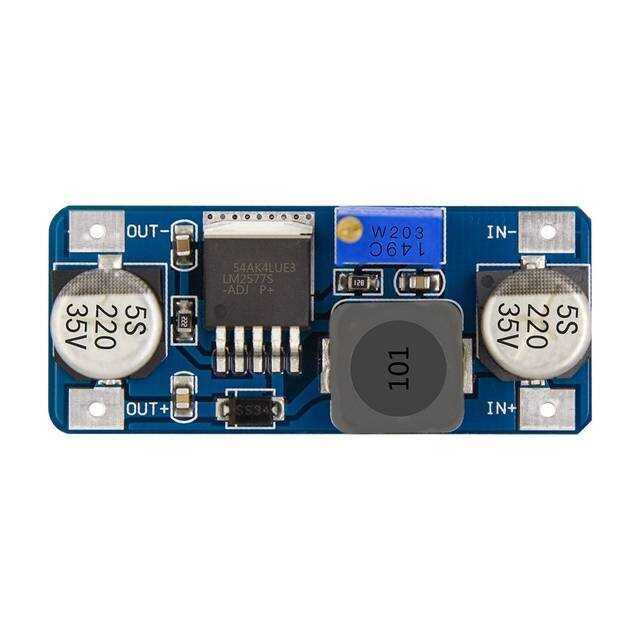

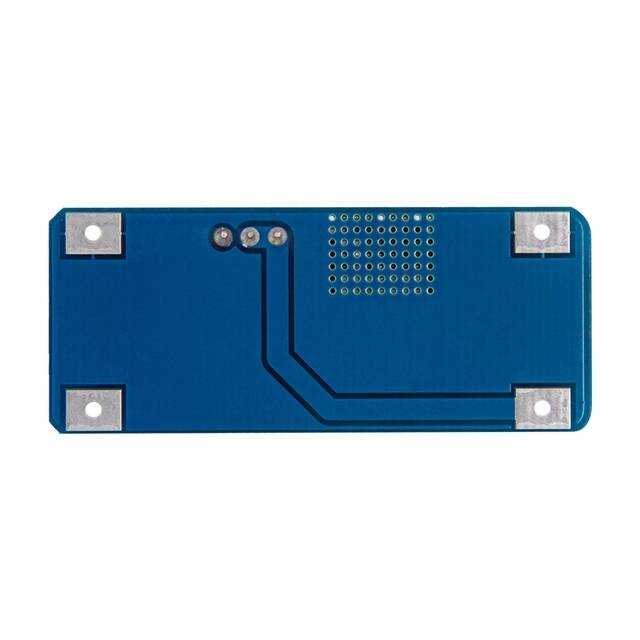

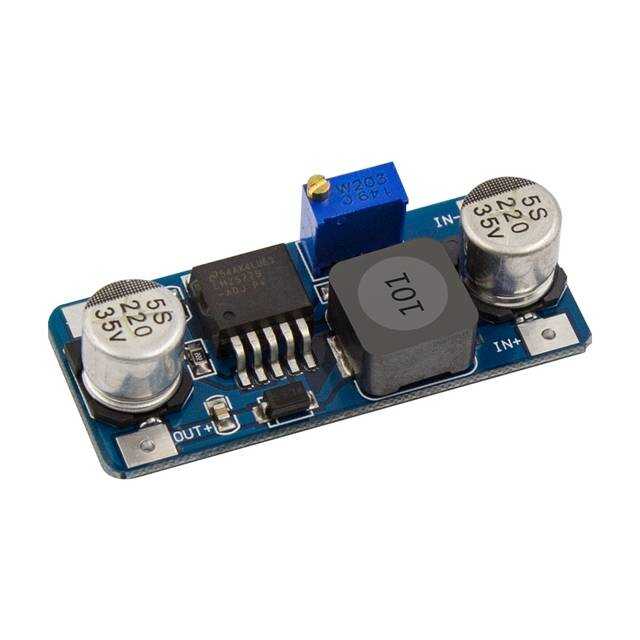

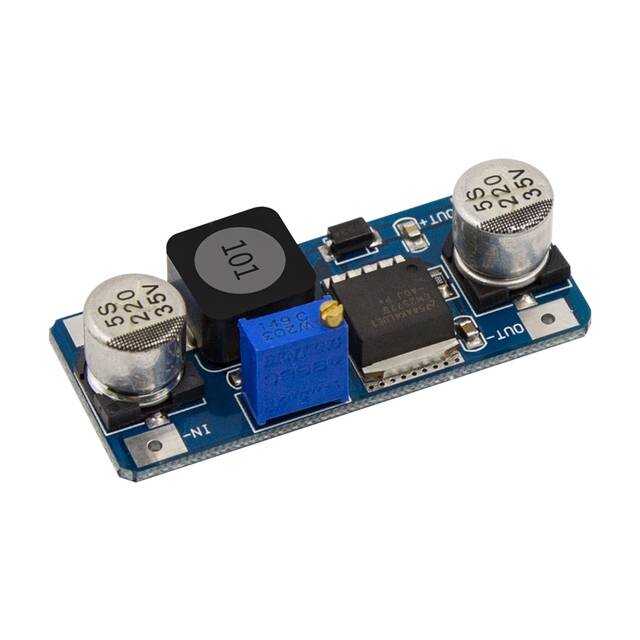

The LM2577 DC-DC Step-Up Power Converter Module is a reliable and efficient voltage booster designed to convert low DC input voltages into higher, adjustable outputs. With a maximum output current of 3A, this module is ideal for powering IoT devices, portable electronics, and robotics that require stable and elevated voltage levels.
- Adjustable Output Voltage: Converts low input voltage to higher levels.
- Wide Input Voltage Range: Operates from 3.5V to 30V DC.
- High Efficiency: Ensures minimal power loss during conversion.
- Compact and Lightweight: Easy to install in various projects.
- Robust Performance: Handles up to 3A output current.
LM2577 Step-Up Power Converter Module Specifications
- Input Voltage: 3.5V to 30V DC
- Output Voltage: Adjustable from 4V to 40V DC
- Output Current: Maximum 3A
- Efficiency: Up to 88%
- Dimensions: 50mm x 25mm x 12mm
LM2577 Step-Up Power Converter Module Applications
- Portable Electronics: Boost battery voltage for mobile devices.
- IoT Projects: Provide elevated power for sensors and modules.
- DIY Electronics: Create custom step-up power systems.
- Robotics: Deliver stable voltage to high-power components.
- Educational Use: Learn about DC-DC step-up converter principles.
