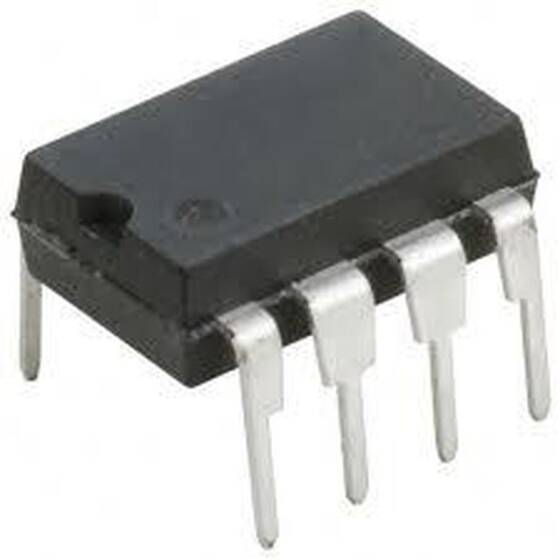

IR2105 DIP-8 PMIC - Power Management IC

IR2105 DIP-8 PMIC - Power Management IC

IR2105 DIP-8 PMIC - Power Management IC Description

IR2105 DIP-8 PMIC - Güç Entegresi is a high-performance power management integrated circuit designed to drive high-side and low-side MOSFETs in a half-bridge configuration. It is ideal for engineers and professionals seeking efficient power management solutions in various electronic applications. With its reliable design and compact DIP-8 package, this IR2105 IC is a staple in the electronics industry for ensuring optimal performance and power efficiency.

IR2105 DIP-8 PMIC - Power Management IC Features

• High-Side and Low-Side Driver: Capable of driving N-channel MOSFETs in a half-bridge configuration, enhancing switching efficiency.
• Under-Voltage Lockout: Built-in protection feature to prevent operation under inadequate voltage conditions.
• Dead-Time Control: Adjustable dead-time control for preventing shoot-through in the switching transistors.
• Bootstrap Supply Voltage: Supports bootstrap operation, allowing high-side driver operation with minimal external components.
• Low Propagation Delay: Ensures rapid response times for high-frequency applications.
• Compact DIP-8 Package: Space-saving form factor ideal for high-density circuit designs.
• Thermal Protection: Integrated thermal shutdown to safeguard against overheating conditions.

IR2105 DIP-8 PMIC - Power Management IC Applications

• Motor Control Systems: Ideal for driving motors in various industrial and consumer applications, offering precise control and efficiency.
• Switch-Mode Power Supplies: Enhances performance and energy efficiency in SMPS designs.
• Renewable Energy Systems: Suitable for inverters and converters in solar and wind power generation setups.
