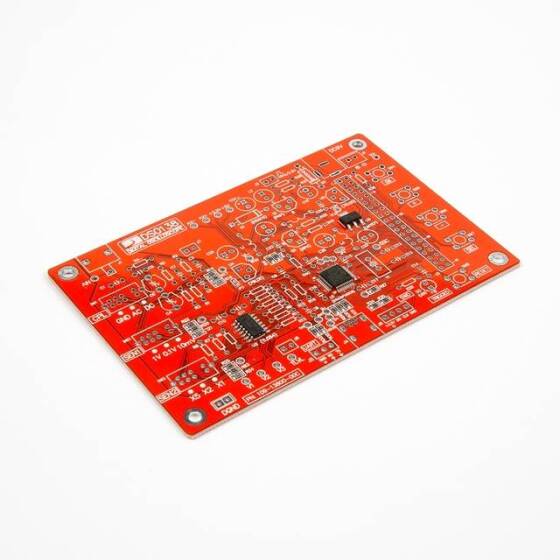

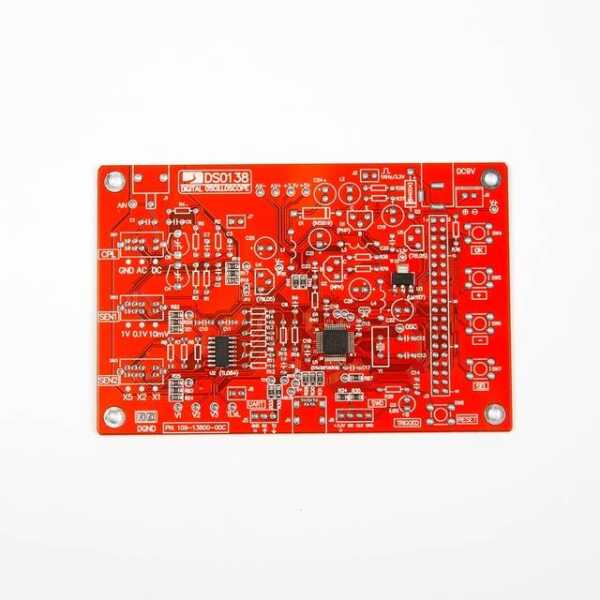

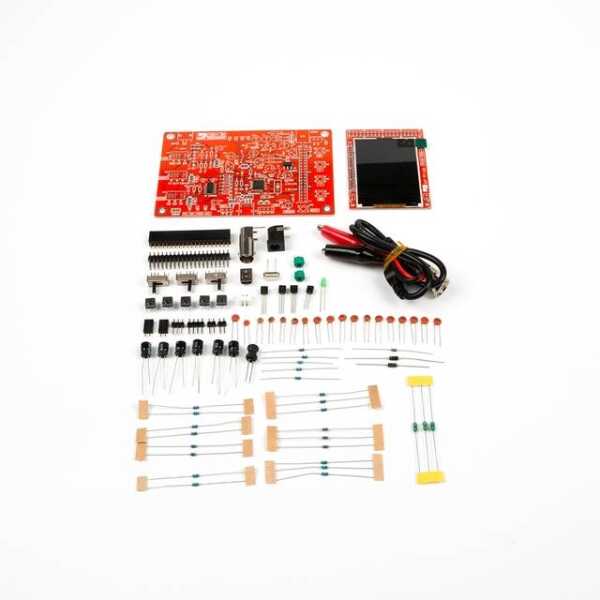

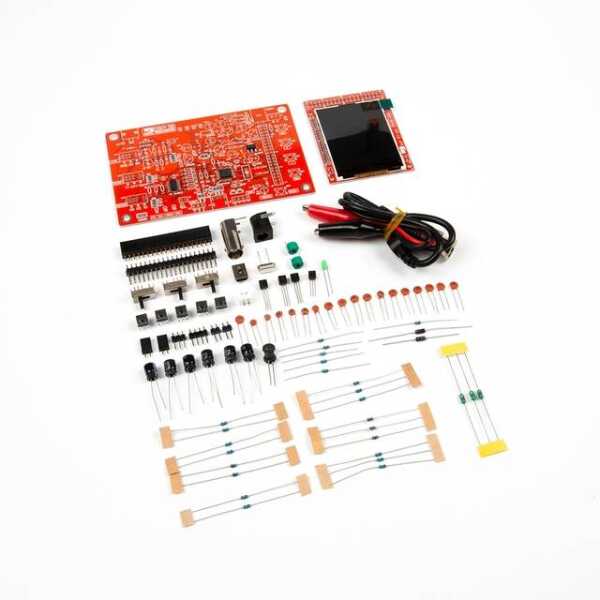

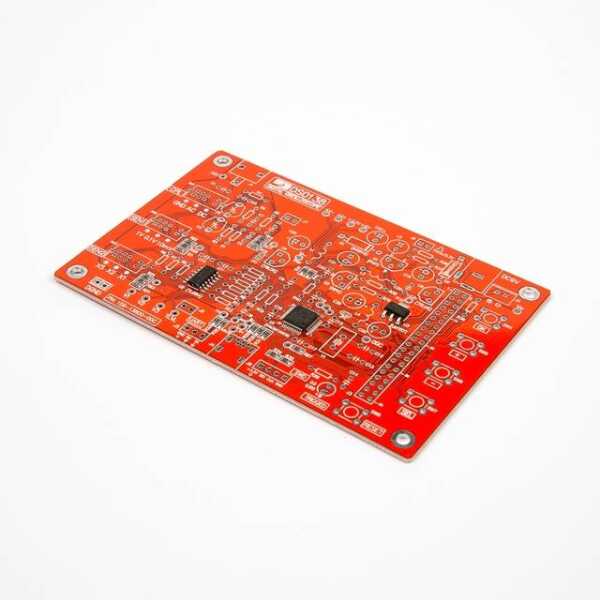

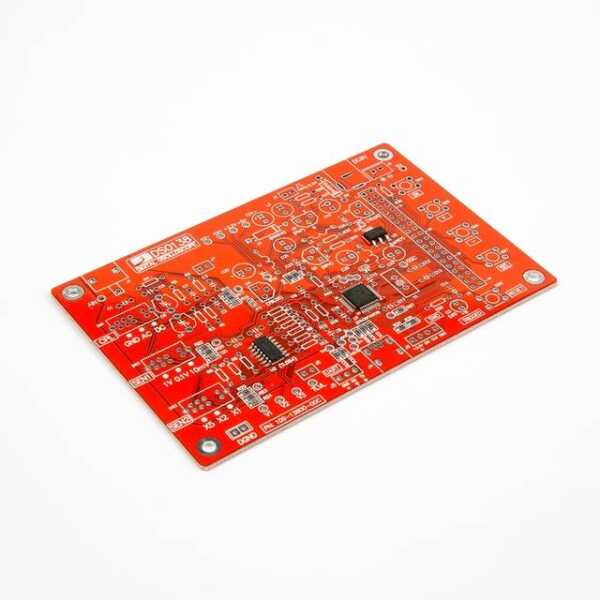

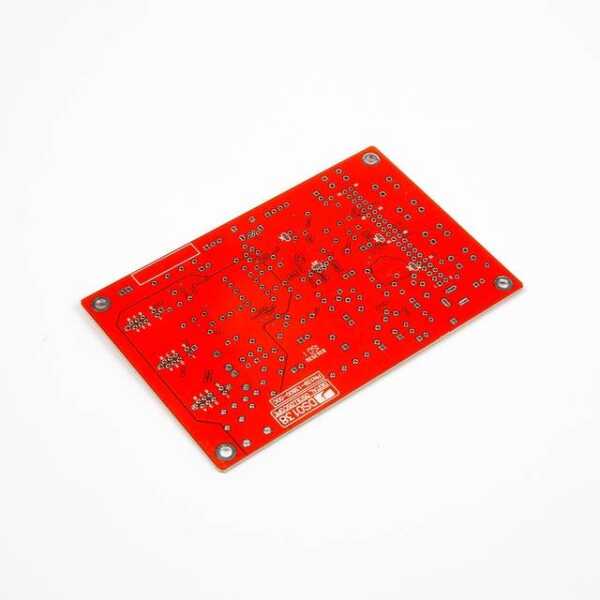

The DIY DSO138 Digital Oscilloscope Kit is a hands-on oscilloscope kit designed for hobbyists, engineers, and students. This kit provides all the necessary components to assemble a functional 2.4-inch digital oscilloscope with a bandwidth of 200kHz, making it suitable for basic signal measurement and analysis. It's perfect for those learning about oscilloscopes or anyone needing a portable, budget-friendly oscilloscope for electronics projects.
- Hands-On Assembly: Assemble your own oscilloscope, offering a great learning experience for electronics enthusiasts.
- 2.4-Inch Display: Provides a clear view of signal waveforms and measurements.
- 200kHz Bandwidth: Suitable for low-frequency signal analysis and basic circuit troubleshooting.
- Portable Design: Small, compact, and battery-operated for use on-the-go or in fieldwork.
DIY DSO138 Specifications
- Bandwidth: 200kHz
- Display: 2.4-inch color TFT display
- Power Supply: Powered by a 9V DC battery or external supply
- Interface: Simple controls for signal measurement and display manipulation
DIY DSO138 Applications
- Learning Tool: Ideal for beginners learning about oscilloscopes and signal analysis.
- Portable Use: Use as a compact and portable oscilloscope for fieldwork or quick troubleshooting.
- Basic Circuit Testing: Great for testing low-frequency circuits, sensors, and hobby electronics.
