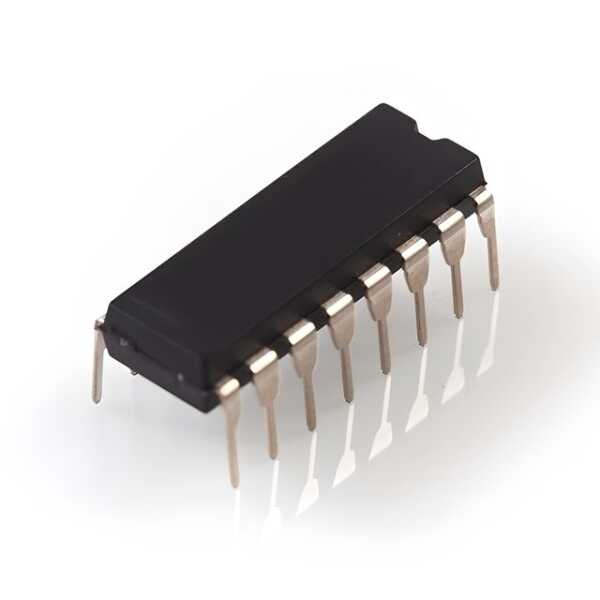

CD40174BE PDIP-16 Flip-Flop IC

CD40174BE PDIP-16 Flip-Flop IC

CD40174BE PDIP-16 Flip-Flop IC Description

The CD40174BE PDIP-16 FLIP-FLOP IC is an essential component in digital logic design, renowned for its reliability and efficiency in storing binary data within electronic circuits. This robust IC is widely utilized in the electronics industry for its ability to maintain state information, making it a fundamental building block for memory storage and sequential logic applications.

CD40174BE PDIP-16 Flip-Flop IC Features

• High Noise Immunity: Built with a Schmitt-trigger input for enhanced noise rejection.
• Low Power Consumption: Efficient power usage due to CMOS technology.
• Wide Operating Voltage Range: Supports a range from 3V to 15V, offering flexibility in design.
• Standardized Pin Configuration: The PDIP-16 package simplifies integration into various designs.
• Temperature Stability: Operates reliably within a broad temperature spectrum.
• Clock Enable Functionality: Allows precise control of data input.
• Edge-Triggered Operation: Ensures data is captured on the clock pulse for synchronous data transfer.

CD40174BE PDIP-16 Flip-Flop IC Applications

• Digital Data Storage: Utilized in memory elements for storing binary data in digital systems.
• Frequency Division: Employed in frequency divider circuits for signal processing applications.
• Shift Registers: Implemented in serial-to-parallel and parallel-to-serial data conversion systems.
