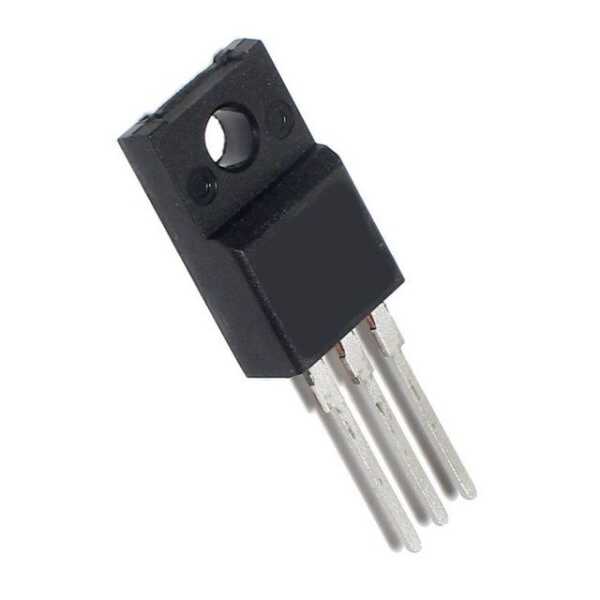

BDW94CFP TO-220F 12A 100V 80W PNP Bipolar Darlington Transistor

BDW94CFP TO-220F 12A 100V 80W PNP Bipolar Darlington Transistor

BDW94CFP TO-220F 12A 100V 80W PNP Bipolar Darlington Transistor Description

BDW94CFP TO-220F 12A 100V 80W PNP Bipolar Darlington Transistor is a high-performance component crucial for power management in modern electronics. Known for its robust design, this transistor is essential in ensuring efficient energy transfer and stability in various electronic applications. With its impressive current and voltage ratings, it provides engineers with the reliability needed in high-demand environments.

BDW94CFP TO-220F 12A 100V 80W PNP Bipolar Darlington Transistor Features

• Package Type: The TO-220F package offers enhanced thermal performance and easy mounting capabilities.
• Current Rating: Supports up to 12A of continuous collector current, making it suitable for demanding applications.
• Voltage Rating: Provides a maximum collector-emitter voltage of 100V, ensuring compatibility with high-voltage circuits.
• Power Dissipation: Capable of dissipating up to 80W of power, facilitating efficient heat management.
• Gain Bandwidth Product: Offers a high-frequency response suitable for fast-switching applications.
• Operating Temperature Range: Designed to perform reliably across a wide temperature range.
• Saturation Voltage: Features low collector-emitter saturation voltage for minimal power loss.

BDW94CFP TO-220F 12A 100V 80W PNP Bipolar Darlington Transistor Applications

• Power Amplifiers: Used in audio and frequency amplifiers for efficient power management and signal amplification.
• Switching Power Supplies: Ideal for use in power supply circuits that require high efficiency and reliability.
• Industrial Control Systems: Essential in controlling motors and actuators, providing precise power regulation.
