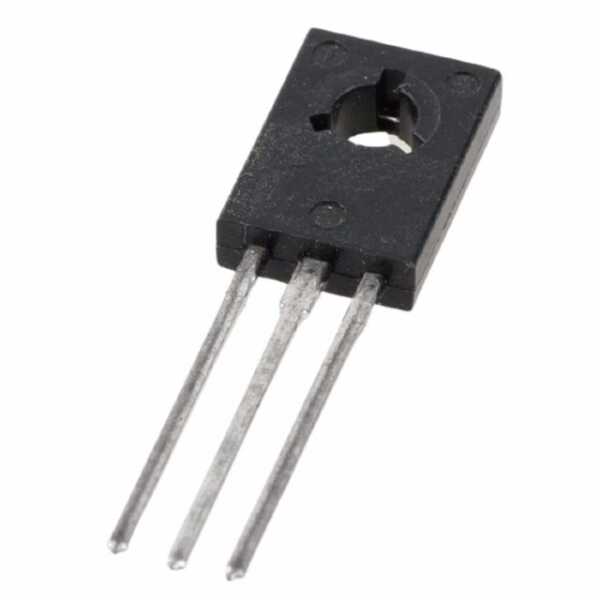

BD680A TO-126 4A 80V 40W PNP Darlington Transistor

BD680A TO-126 4A 80V 40W PNP Darlington Transistor

BD680A TO-126 4A 80V 40W PNP Darlington Transistor Description

The BD680A TO-126 4A 80V 40W PNP Transistör is a robust and reliable component designed for high-performance electronic applications. Its ability to handle substantial current and voltage makes it a crucial choice for engineers focusing on efficient power management and amplification in various electronic circuits.

BD680A TO-126 4A 80V 40W PNP Darlington Transistor Features

• Package Type: TO-126, providing efficient heat dissipation and compact integration into circuit boards.
• Current Rating: Capable of delivering up to 4A of continuous current, ensuring optimal performance in demanding applications.
• Voltage Rating: Withstands up to 80V across the collector-emitter junction, making it suitable for high-voltage applications.
• Power Dissipation: Supports power dissipation of up to 40W, enhancing reliability in power regulation circuits.
• Gain Bandwidth Product: [Value], facilitating high-frequency operations.
• Low Collector-Emitter Saturation Voltage: [Value], minimizing power loss in switching applications.
• High DC Current Gain: [Value], ensuring efficient amplification in signal processing circuits.

BD680A TO-126 4A 80V 40W PNP Darlington Transistor Applications

• Power Amplifiers: Ideal for use in audio and RF amplifiers due to its high current and voltage handling capabilities.
• Switching Circuits: Effective in switching applications where efficient power management is crucial.
• Voltage Regulation: Used in power supply circuits to maintain consistent voltage levels, ensuring stable performance of electronic devices.
