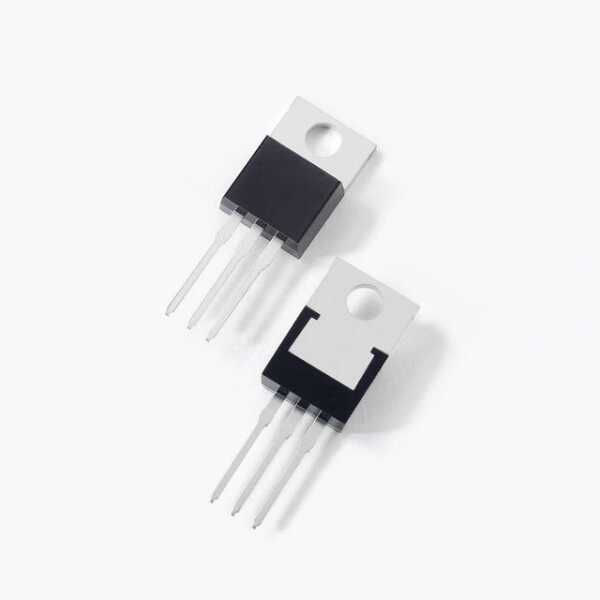

2SD970 TO-220 8A 120V 40W NPN Transistor

2SD970 TO-220 8A 120V 40W NPN Transistor

2SD970 TO-220 8A 120V 40W NPN Transistor Description

The 2SD970 TO-220 8A 120V 40W NPN Transistör is a robust component designed for high-performance applications in the electronics industry. Its ability to handle significant power and voltage makes it an ideal choice for engineers looking to optimize circuit designs, specifically in power amplification and high-speed switching contexts.

2SD970 TO-220 8A 120V 40W NPN Transistor Features

• Collector Current (Ic): Capable of handling up to 8A, ensuring reliable performance in high-current circuits.
• Collector-Emitter Voltage (Vceo): Rated at 120V, providing flexibility for a variety of voltage applications.
• Power Dissipation (Pd): Supports up to 40W, allowing for efficient heat management.
• Package Type: Comes in a TO-220 package, facilitating easy mounting and heat dissipation.
• High Transition Frequency: Ensures swift switching speeds, crucial for fast-paced electronic applications.
• Low Saturation Voltage: Minimizes power loss during operation, enhancing overall system efficiency.
• Thermal Resistance: Optimized for effective thermal management to prevent overheating.

2SD970 TO-220 8A 120V 40W NPN Transistor Applications

• Audio Amplifiers: Utilized in high-power audio amplification systems for clear and powerful sound output.
• Power Supplies: Integral in designing efficient and reliable power supply circuits for various electronic devices.
• Switching Regulators: Essential for creating fast and efficient switching regulators in power management systems.
