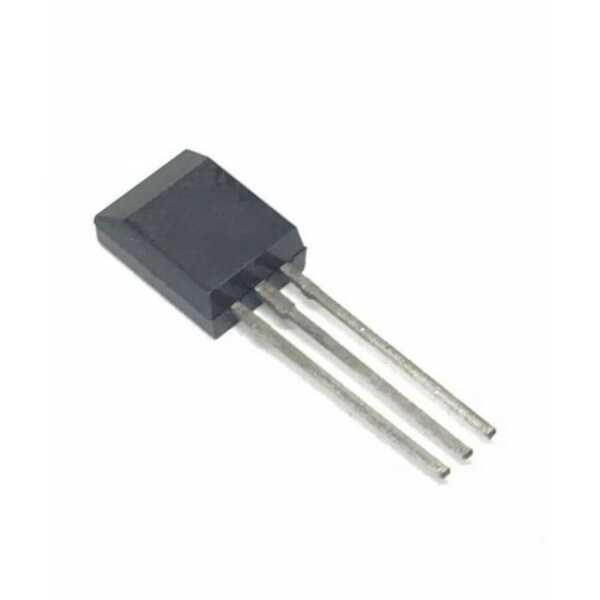

2SD774 TO-92 1A 100V 1W NPN Transistor

2SD774 TO-92 1A 100V 1W NPN Transistor

2SD774 TO-92 1A 100V 1W NPN Transistor Description

2SD774 TO-92 1A 100V 1W NPN Transistor is an essential component for any engineer looking to efficiently drive loads in a variety of electronic applications. With its robust design and reliable performance, this NPN transistor is perfectly suited for tasks that require efficient current flow and high voltage resistance. Its compact TO-92 package ensures ease of integration into circuit designs, making it a staple in power management and amplification systems.

2SD774 TO-92 1A 100V 1W NPN Transistor Features

• Collector Current: Capable of handling up to 1A for efficient current management in various applications.
• Collector-Emitter Voltage: Withstands up to 100V, ensuring operational safety and reliability in high-voltage circuits.
• Power Dissipation: Rated at 1W, providing adequate thermal management for stable performance.
• Package Type: Compact TO-92 package allows for easy placement and integration in dense circuit layouts.
• Transition Frequency: Suitable for high-speed switching applications.
• Gain Bandwidth Product: Optimized for a variety of signal amplification tasks.
• Operating Temperature Range: Designed to perform under a wide range of environmental conditions.

2SD774 TO-92 1A 100V 1W NPN Transistor Applications

• Power Amplifiers: Ideal for boosting signal strength in audio and RF applications.
• Switching Circuits: Efficiently controls current flow in power supply and conversion systems.
• Load Drivers: Capable of driving motors, relays, and other inductive loads in industrial and consumer electronics.
