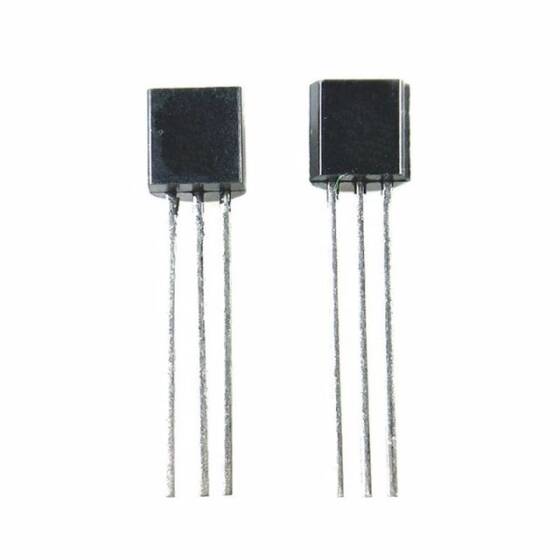

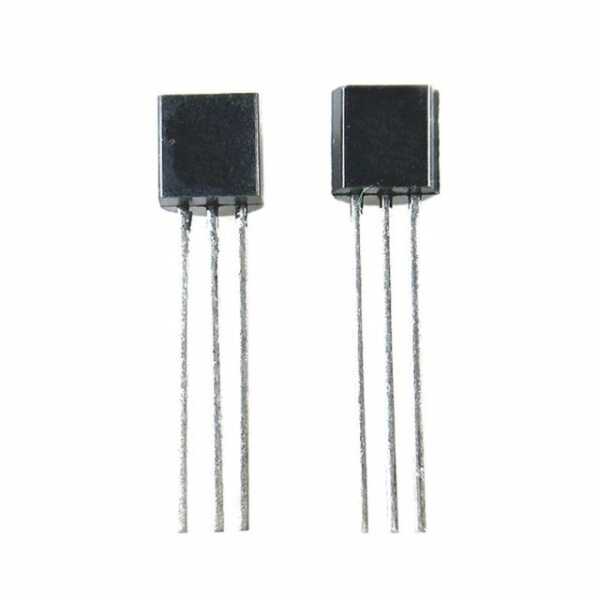

2SD438-F TO-92 0.7A 100V 0.75W NPN Transistor

2SD438-F TO-92 0.7A 100V 0.75W NPN Transistor

2SD438-F TO-92 0.7A 100V 0.75W NPN Transistor Description

2SD438-F is an NPN transistor housed in a TO-92 package, designed to deliver optimal performance in various electronic applications. With a collector current of 0.7A, a collector-emitter voltage of 100V, and a power dissipation of 0.75W, this transistor is ideal for engineers looking for reliable switching and amplification solutions. It is widely used in consumer electronics and industrial applications, providing a balance of affordability and efficiency.

2SD438-F TO-92 0.7A 100V 0.75W NPN Transistor Features

• Collector Current (Ic): 0.7A, providing substantial current capacity for small-signal applications.
• Collector-Emitter Voltage (Vceo): 100V, suitable for high-voltage applications.
• Power Dissipation (Pd): 0.75W, ensuring efficient heat management in compact designs.
• Package Type: TO-92, a standard package that facilitates easy integration into PCB designs.
• Transition Frequency (fT): [Frequency Value] MHz, offering high-speed switching capabilities.
• Gain Bandwidth Product: [Bandwidth Value], ideal for audio and RF applications.
• Operating Temperature Range: [Temperature Range], ensuring reliability across various environmental conditions.

2SD438-F TO-92 0.7A 100V 0.75W NPN Transistor Applications

• Audio Amplifiers: Used in audio amplification circuits for enhanced sound quality and performance.
• Switching Circuits: Ideal for high-speed switching applications in consumer electronics.
• Signal Processing: Employed in signal processing units for effective data management and transmission.
