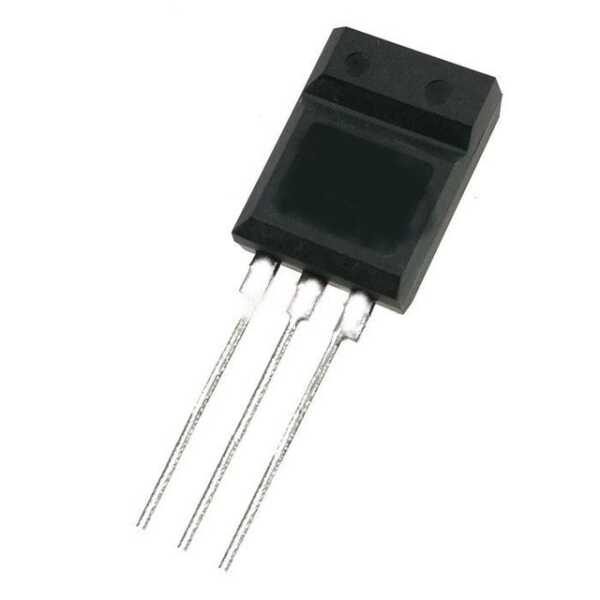

2SD2137-Q TO-220F 60V 3A 15W NPN Transistor

2SD2137-Q TO-220F 60V 3A 15W NPN Transistor

2SD2137-Q TO-220F 60V 3A 15W NPN Transistor Description

2SD2137-Q TO-220F 60V 3A 15W NPN Transistor serves as a crucial component in modern electronic circuits, offering robust performance in power amplification and switching applications. With its state-of-the-art design and high reliability, this NPN transistor is ideal for engineers looking to enhance the efficiency of their electronic systems.

2SD2137-Q TO-220F 60V 3A 15W NPN Transistor Features

• Package Type: The transistor is housed in a TO-220F package, providing excellent thermal performance and easy integration into various designs.
• Voltage Rating: With a collector-emitter voltage of 60V, it ensures reliable operation under high voltage conditions.
• Current Capacity: Supports a collector current of 3A, making it suitable for high-current applications.
• Power Dissipation: Capable of handling up to 15W power, which allows for efficient energy management.
• Gain: Offers a high gain bandwidth, optimizing signal amplification.
• Thermal Resistance: Features low thermal resistance, enhancing heat dissipation capabilities.
• Durability: Engineered for longevity, ensuring stable performance over time.

2SD2137-Q TO-220F 60V 3A 15W NPN Transistor Applications

• Audio Amplifiers: Ideal for use in audio amplification systems, providing clear and powerful sound output.
• Switching Regulators: Commonly used in switching power supplies and regulators due to its efficient power handling capabilities.
• Motor Controls: Suitable for driving motors in various applications, ensuring smooth and reliable operation.
