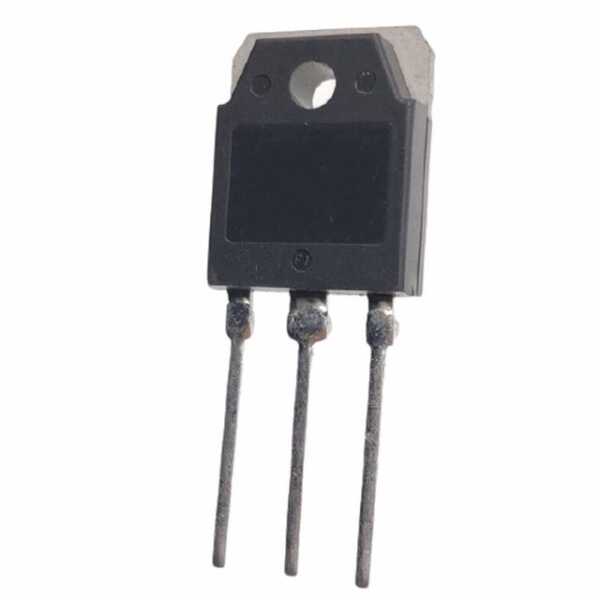

2SD209L TO-3P 12A 700V NPN Transistor

2SD209L TO-3P 12A 700V NPN Transistor

2SD209L TO-3P 12A 700V NPN Transistor Description

2SD209L TO-3P 12A 700V NPN Transistor is an industry-standard semiconductor device that is highly efficient in managing high power applications. Engineered for superior thermal performance and reliability, this NPN transistor is widely used in power amplification and switching operations. With its robust design, the 2SD209L caters to the demanding needs of modern electronics and power systems.

2SD209L TO-3P 12A 700V NPN Transistor Features

• Package Type: TO-3P package ensures optimal heat dissipation.
• Collector Current: Capable of handling up to 12A current, making it suitable for high-power applications.
• Collector-Emitter Voltage: Withstands up to 700V, providing high voltage tolerance.
• Configuration: NPN transistor configuration for efficient switching.
• Power Dissipation: Designed for xx W power dissipation to ensure reliable performance.
• High Gain: Delivers a current gain of xx for enhanced amplification.
• Temperature Stability: Operates effectively across a wide temperature range of xx °C to xx °C.

2SD209L TO-3P 12A 700V NPN Transistor Applications

• Power Amplifiers: Utilized in audio and RF power amplification circuits for superior sound and signal quality.
• Switching Regulators: Essential in DC-DC converters and energy-efficient power supplies.
• Inverter Circuits: Integral to the design of inverters for renewable energy systems and industrial applications.
