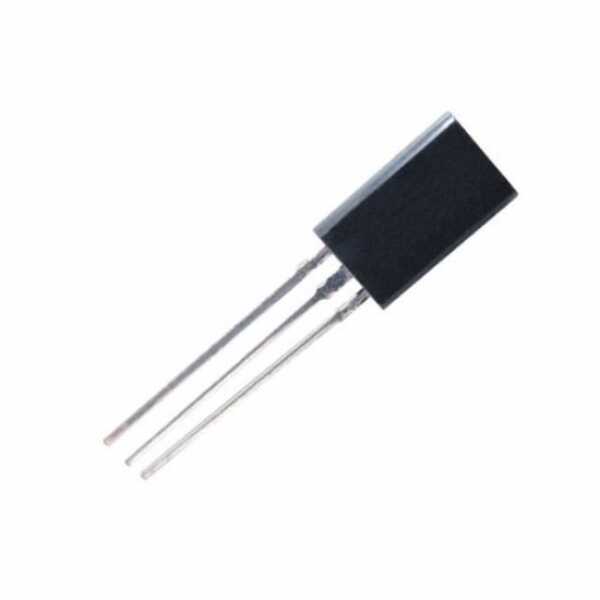

2SD1809 TO-92L 1.5A 60V 0.9W NPN Transistor

2SD1809 TO-92L 1.5A 60V 0.9W NPN Transistor

2SD1809 TO-92L 1.5A 60V 0.9W NPN Transistor Description

2SD1809 housed in a TO-92L package is an essential component for engineers seeking reliable performance in power amplification and switching applications. With its maximum current capability of 1.5A and voltage rating of 60V, this 0.9W NPN transistor offers a robust solution for both consumer electronics and industrial equipment. Its compact design and efficient operation make it a preferred choice for circuit designers worldwide.

2SD1809 TO-92L 1.5A 60V 0.9W NPN Transistor Features

• Maximum Collector Current (Ic): 1.5A
• Maximum Collector-Emitter Voltage (Vce): 60V
• Power Dissipation: 0.9W
• Package Type: TO-92L
• Transition Frequency: 100 MHz (typical)
• DC Current Gain (hFE): 60 - 400 (typical)
• Operating Temperature Range: -55°C to 150°C

2SD1809 TO-92L 1.5A 60V 0.9W NPN Transistor Applications

• Audio Amplification: Ideal for enhancing sound quality in consumer audio devices
• Switching Circuits: Efficiently used in power management and control systems
• Signal Processing: Suitable for amplifying low-frequency signals in communication devices
