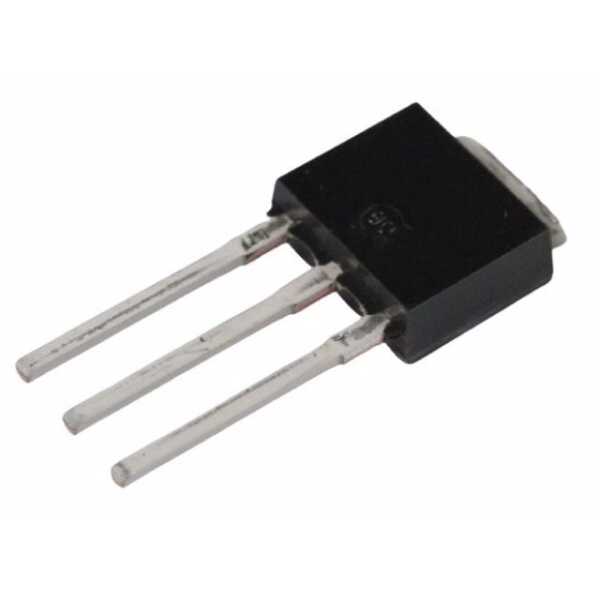

2SD1803 TO-251 60V 5A 20W NPN Transistor

2SD1803 TO-251 60V 5A 20W NPN Transistor

2SD1803 TO-251 60V 5A 20W NPN Transistor Description

2SD1803 TO-251 60V 5A 20W NPN Transistör is a robust and reliable component essential for various electronic applications, offering exceptional performance in power amplification and switching operations. This NPN transistor is housed in a compact TO-251 package, making it ideal for designs requiring efficient space utilization. With its capacity to handle up to 60V and a current of 5A, it is a preferred choice in high-power applications, providing stability and efficiency across diverse engineering projects.

2SD1803 TO-251 60V 5A 20W NPN Transistor Features

• High Voltage Rating: Capable of withstanding up to 60V, ensuring durability in demanding circuits.
• High Current Capability: Supports a collector current of 5A, making it suitable for high-power applications.
• Power Dissipation: Delivers a power dissipation of 20W, enhancing thermal efficiency.
• Compact Package: Housed in a TO-251 form factor, optimizing space in circuit designs.
• High Gain: Offers substantial current gain, facilitating efficient signal amplification.
• Low Collector-Emitter Saturation Voltage: Minimizes power loss during operation.
• Rugged Construction: Built to withstand electrical and thermal stress, ensuring long-term reliability.

2SD1803 TO-251 60V 5A 20W NPN Transistor Applications

• Power Amplifiers: Ideal for use in audio and RF power amplification systems.
• Switching Circuits: Suitable for high-efficiency switching operations in power supplies and converters.
• Motor Drives: Utilized in driving DC motors in industrial and automotive applications due to its high current capacity.
