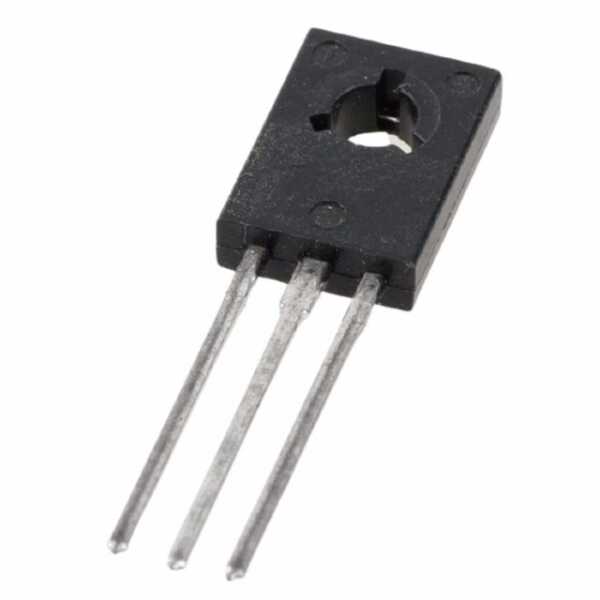

2SD1683 TO-126 4A 50V 10W NPN Transistor

2SD1683 TO-126 4A 50V 10W NPN Transistor

2SD1683 TO-126 4A 50V 10W NPN Transistor Description

2SD1683 TO-126 4A 50V 10W NPN Transistör is a robust and versatile component crucial for modern electronic applications. Designed to handle medium power loads, this transistor is indispensable in amplifying and switching tasks within a range of electronic devices. Its relevance in the industry stems from its reliability and efficiency, making it a preferred choice for engineers and professionals seeking optimal performance in compact form factors.

2SD1683 TO-126 4A 50V 10W NPN Transistor Features

• Package Type: TO-126, ensuring efficient thermal management and ease of integration into PCB designs.
• Collector Current (Ic): 4A, suitable for handling medium power loads in various applications.
• Collector-Emitter Voltage (Vce): 50V, providing adequate voltage handling capability for diverse circuits.
• Power Dissipation: 10W, allowing for effective heat dissipation during operation.
• Polarity: NPN, offering high-speed switching and amplification properties.
• Transition Frequency: [Placeholder: MHz], enabling high-frequency operation in RF applications.
• Gain Bandwidth Product: [Placeholder: MHz], ensuring efficient amplification over a wide range of frequencies.

2SD1683 TO-126 4A 50V 10W NPN Transistor Applications

• Audio Amplifiers: Ideal for augmenting sound signals in consumer electronics and professional audio equipment.
• Switching Power Supplies: Essential for managing power conversion and regulation in various industrial applications.
• Motor Drivers: Utilized in controlling and driving motors in automation and robotics, benefiting from its high current capacity.
