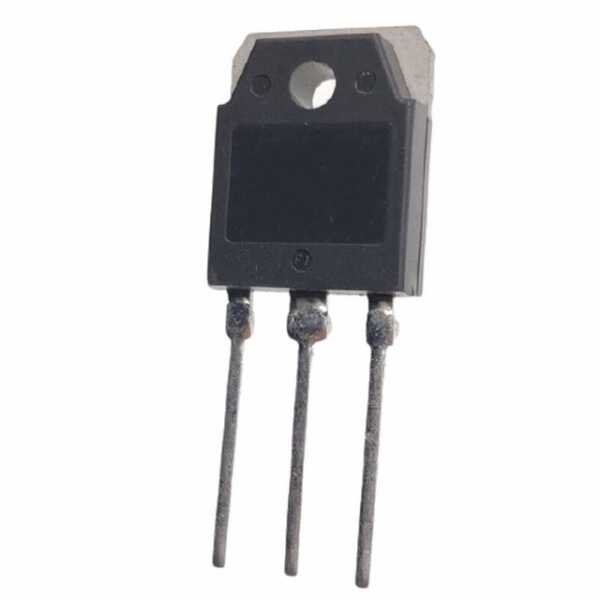

2SD1398 TO-3P 5A 1500V 120W NPN Transistor

2SD1398 TO-3P 5A 1500V 120W NPN Transistor

2SD1398 TO-3P 5A 1500V 120W NPN Transistor Description

2SD1398 TO-3P 5A 1500V 120W NPN Transistor is a high-performance electronic component designed to meet the demands of modern power management and amplification systems. Its robust construction and superior electrical characteristics make it an ideal choice for engineers seeking reliability and efficiency in high-voltage applications. With its capability to handle up to 1500V and 5A, this transistor is a cornerstone in high-power electronic circuits.

2SD1398 TO-3P 5A 1500V 120W NPN Transistor Features

• Package Type: The TO-3P package ensures excellent thermal management and durability, suitable for high-power applications.
• Collector Current: Capable of handling up to 5A, making it suitable for demanding electrical circuits.
• Collector-Emitter Voltage: Withstands voltages up to 1500V, ensuring reliability in high-voltage environments.
• Power Dissipation: Supports up to 120W of power dissipation, ideal for high-efficiency applications.
• High Gain: Provides excellent amplification with a high current gain characteristic.
• Thermal Stability: Designed to maintain performance consistency across a wide temperature range.
• Durability: Engineered for longevity in rigorous operational conditions.

2SD1398 TO-3P 5A 1500V 120W NPN Transistor Applications

• Power Amplifiers: Ideal for use in audio and RF power amplifiers, delivering powerful performance with minimal distortion.
• Switching Circuits: Perfect for high-speed switching applications, enhancing efficiency in power supply systems.
• Industrial Equipment: Used in heavy-duty machinery and equipment, providing reliable operation in demanding environments.
