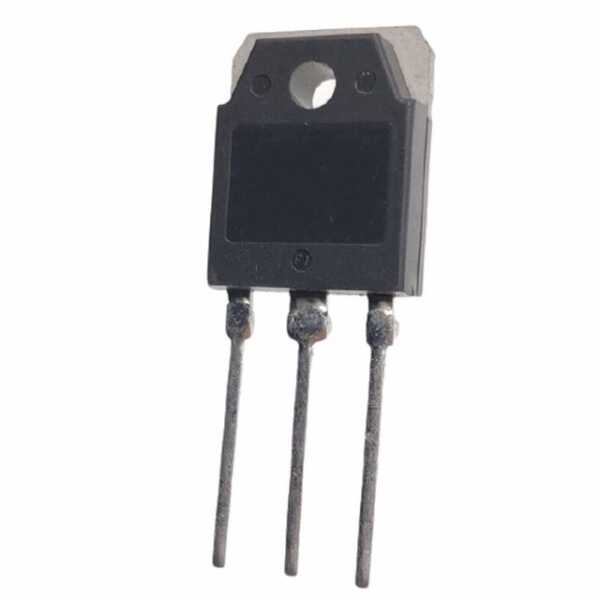

2SD1397 TO-3P 3.5A 1500V 80W NPN Transistor

2SD1397 TO-3P 3.5A 1500V 80W NPN Transistor

2SD1397 TO-3P 3.5A 1500V 80W NPN Transistor Description

The 2SD1397 is a high-performance TO-3P package NPN transistor designed to deliver exceptional results in high-voltage and high-current applications. With a current capacity of 3.5A, voltage threshold of 1500V, and power dissipation up to 80W, this transistor is an indispensable component for engineers seeking reliable solutions for demanding electronic circuits.

2SD1397 TO-3P 3.5A 1500V 80W NPN Transistor Features

• High Voltage: Capable of withstanding up to 1500V, making it ideal for high-voltage applications.
• High Current Capacity: Supports currents up to 3.5A to enable robust performance in power-intensive circuits.
• Power Dissipation: Efficiently dissipates heat with a power rating of 80W, ensuring stability and longevity.
• Durable Package: Encased in a TO-3P package for enhanced thermal management and durability.
• Low Saturation Voltage: Ensures minimal power loss and efficient operation.
• High-Speed Switching: Facilitates rapid switching, crucial for modern electronic systems.
• Reliable Performance: Engineered for consistent operation under diverse conditions.

2SD1397 TO-3P 3.5A 1500V 80W NPN Transistor Applications

• Power Supplies: Ideal for use in switch-mode power supply (SMPS) circuits where high efficiency is required.
• Motor Control: Suitable for driving motors in industrial and automotive applications, providing the necessary control and reliability.
• High-Voltage Amplifiers: Perfect for audio and RF amplifiers that demand high power and voltage handling capabilities.
