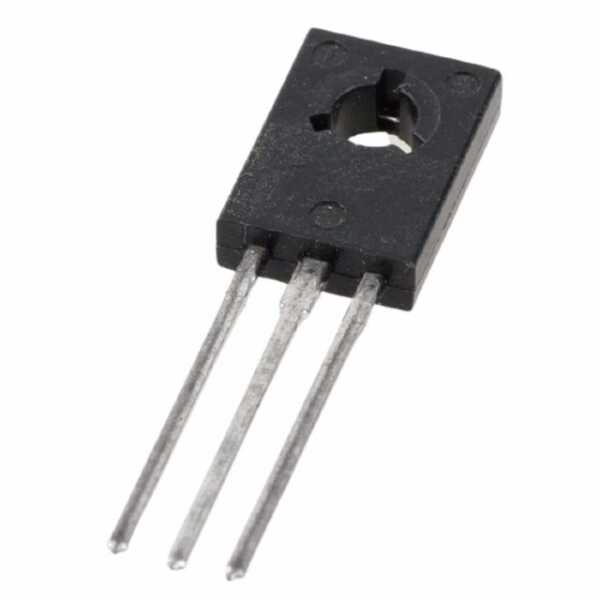

2SD1380 TO-126 2A 40V 10W NPN Transistor

2SD1380 TO-126 2A 40V 10W NPN Transistor

2SD1380 TO-126 2A 40V 10W NPN Transistor Description

2SD1380 TO-126 2A 40V 10W NPN Transistor is a high-performance NPN bipolar junction transistor designed for applications requiring moderate power handling and high switching speed. With its robust construction and reliable performance, this transistor is an essential component in power amplification and switching circuits, offering a balance of efficiency and durability ideal for both industrial and consumer electronics.

2SD1380 TO-126 2A 40V 10W NPN Transistor Features

• Package Type: TO-126, offering excellent thermal performance and mechanical stability.
• Collector Current: Capable of handling up to 2A, making it suitable for a range of intermediate power applications.
• Collector-Emitter Voltage: Withstands up to 40V, ensuring compatibility with various voltage levels.
• Power Dissipation: Rated at 10W, providing high power efficiency in compact designs.
• Transition Frequency: Designed for optimal high-frequency operation, supporting dynamic electronic applications.
• Gain Bandwidth Product: Offers a high bandwidth, facilitating faster switching times.
• Thermal Resistance: Low thermal resistance for enhanced heat dissipation and performance reliability.

2SD1380 TO-126 2A 40V 10W NPN Transistor Applications

• Power Amplifiers: Ideal for use in audio and RF amplifiers, where moderate power and high efficiency are paramount.
• Switching Circuits: Perfect for implementing in SMPS and other high-speed switching applications.
• Motor Control: Suitable for driving small to medium-sized motors, providing reliable performance in automotive and industrial motor control systems.
