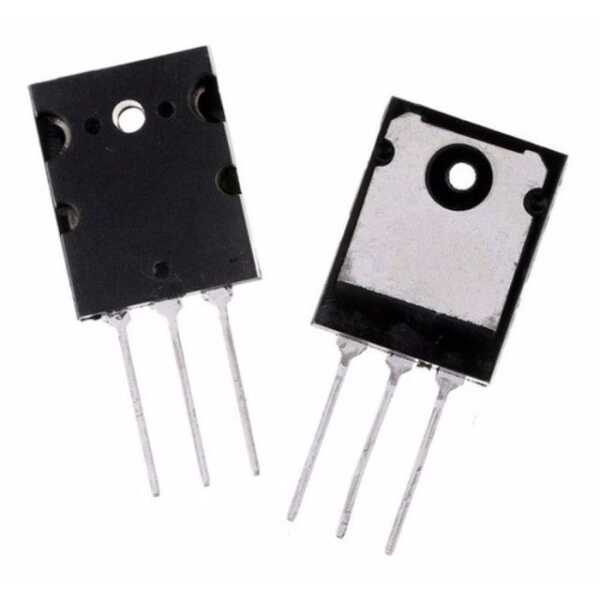

2SC5144 TO-3PL 1700V 20A 200W NPN Transistor

2SC5144 TO-3PL 1700V 20A 200W NPN Transistor

2SC5144 TO-3PL 1700V 20A 200W NPN Transistor Description

2SC5144 TO-3PL 1700V 20A 200W NPN Transistor is a high-performance transistor designed for use in demanding power applications. Its robust TO-3PL package and high-voltage capability make it an essential component for industries focused on power amplification and switching. With a maximum collector-emitter voltage of 1700V, a continuous collector current of 20A, and a power dissipation of 200W, this transistor is ideal for engineers seeking reliability and efficiency.

2SC5144 TO-3PL 1700V 20A 200W NPN Transistor Features

• High Voltage Tolerance: Capable of withstanding up to 1700V, ensuring robust performance in high-voltage circuits.
• Current Handling: Supports a continuous collector current of 20A, making it suitable for high-current applications.
• Power Dissipation: Efficiently dissipates up to 200W, reducing thermal stress in demanding environments.
• Package Type: Encased in a durable TO-3PL package for enhanced thermal management and mechanical stability.
• Switching Speed: Provides swift switching capabilities for improved response rates in electronic circuits.
• Thermal Resistance: Features low thermal resistance to facilitate efficient heat dissipation.
• Reliability: Constructed with high-quality materials for long-lasting performance and durability.

2SC5144 TO-3PL 1700V 20A 200W NPN Transistor Applications

• Power Amplifiers: Utilized in audio and RF power amplification for high-fidelity sound and signal quality.
• Switching Regulators: Integral in the design of switching regulators and power conversion systems for efficient energy management.
• Industrial Power Supplies: Employed in industrial-grade power supplies for reliable performance in challenging environments.
