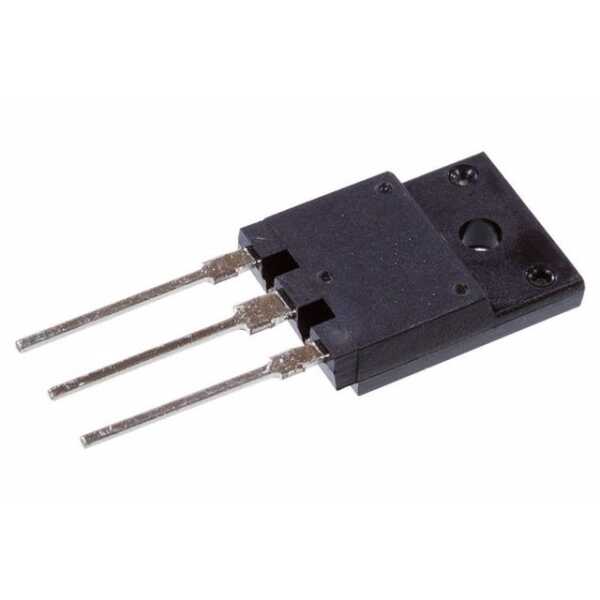

2SC4503 TO-3PF 100V 30A 80W NPN Transistor

2SC4503 TO-3PF 100V 30A 80W NPN Transistor

2SC4503 TO-3PF 100V 30A 80W NPN Transistor Description

2SC4503 TO-3PF 100V 30A 80W NPN Transistor is a high-performance transistor designed for demanding power applications. With its robust TO-3PF package, it ensures excellent thermal management and reliability. This NPN transistor is ideal for high-current and high-voltage applications, delivering up to 30A of collector current and a collector-emitter voltage of 100V. Rated at 80W power dissipation, it is widely used in industrial and consumer electronics, providing efficiency and durability.

2SC4503 TO-3PF 100V 30A 80W NPN Transistor Features

• High Collector Current: Capable of handling up to 30A for robust performance in power applications.
• Collector-Emitter Voltage: Designed to operate safely at 100V, suitable for high-voltage environments.
• Power Dissipation: Efficient thermal management with a power rating of 80W.
• TO-3PF Package: Ensures excellent heat dissipation and mechanical stability.
• Low Saturation Voltage: Provides efficient operation with minimal power loss.
• High-Speed Switching: Optimized for rapid on-off transitions in switching applications.
• Durable Construction: Built for long-lasting performance in demanding settings.

2SC4503 TO-3PF 100V 30A 80W NPN Transistor Applications

• Power Amplifiers: Ideal for use in high-power audio amplifiers and RF amplifiers.
• Switching Power Supplies: Suitable for efficient power conversion in SMPS designs.
• Motor Control: Used in industrial and consumer motor control applications for efficient performance.
