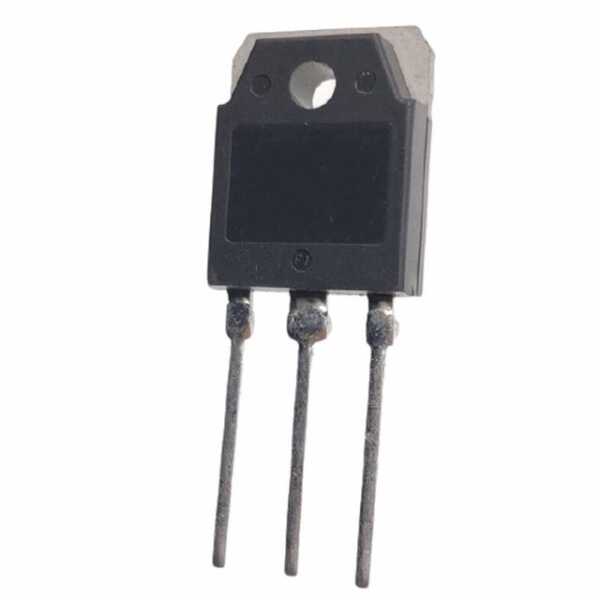

2SC3688 TO-3P 1500V 10A 150W NPN Transistor

2SC3688 TO-3P 1500V 10A 150W NPN Transistor

2SC3688 TO-3P 1500V 10A 150W NPN Transistor Description

2SC3688 TO-3P 1500V 10A 150W NPN Transistor is a high-performance semiconductor device designed to meet the demanding needs of modern electronic applications. With its robust construction and reliable performance, it plays a crucial role in power amplification and switching in a variety of industrial and consumer electronics. Its high voltage and current handling capabilities make it an essential component for engineers seeking efficiency and durability in their electronic designs.

2SC3688 TO-3P 1500V 10A 150W NPN Transistor Features

• High Voltage Rating: Capable of handling up to 1500V, making it suitable for high-voltage applications.
• Current Capacity: Supports continuous collector current up to 10A, ideal for power-intensive tasks.
• Power Dissipation: Rated at 150W, allowing for efficient heat management under load.
• Package Type: Encased in a TO-3P package, ensuring durability and ease of installation.
• Fast Switching Speeds: Enables rapid on/off control for precision applications.
• High Reliability: Designed for longevity and consistent performance in various environments.
• Thermal Stability: Maintains functionality across a wide temperature range, optimizing performance.

2SC3688 TO-3P 1500V 10A 150W NPN Transistor Applications

• Industrial Power Supplies: Utilized in the design of high-efficiency power supply units for industrial equipment.
• Audio Amplifiers: Provides the necessary power amplification for high-fidelity audio systems.
• Motor Control: Used in motor drive circuits to ensure smooth and controlled operation of industrial motors.
