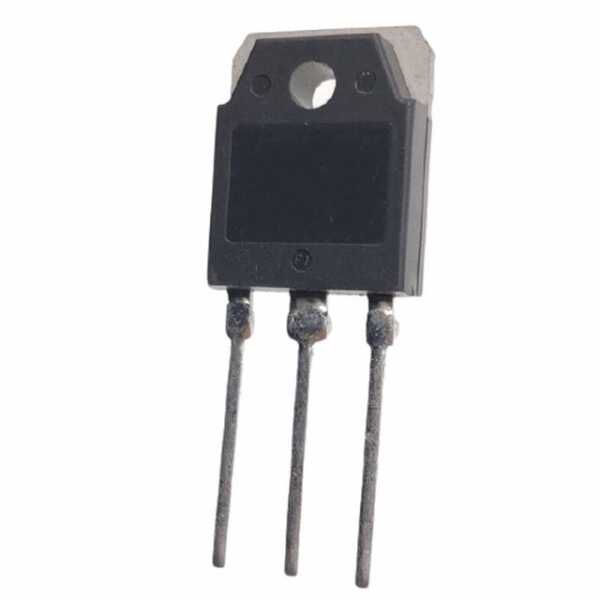

2SC3505 TO-3P 900V 6A 80W NPN Transistor

2SC3505 TO-3P 900V 6A 80W NPN Transistor

2SC3505 TO-3P 900V 6A 80W NPN Transistor Description

2SC3505 TO-3P 900V 6A 80W NPN Transistor is a high-voltage, high-current transistor designed for robust performance in demanding electronic applications. This versatile component is essential in the power electronics industry, enabling engineers to efficiently manage high-power circuits with ease. With its 900V and 6A capabilities, it is ideal for applications requiring high energy throughput, ensuring reliability and durability.

2SC3505 TO-3P 900V 6A 80W NPN Transistor Features

• High Voltage Capacity: Capable of handling up to 900V, making it suitable for high-voltage applications.
• Current Rating: Supports a continuous current of 6A, ideal for high-power requirements.
• Power Dissipation: Designed to dissipate up to 80W of power, ensuring efficient thermal management.
• Package Type: Encapsulated in a TO-3P package for enhanced thermal performance and reliability.
• High Transition Frequency: Provides a fast switching speed for efficient operation in high-frequency circuits.
• Robust Construction: Engineered for durability in harsh environments and demanding applications.
• Low Saturation Voltage: Minimizes power loss and improves efficiency in circuit designs.

2SC3505 TO-3P 900V 6A 80W NPN Transistor Applications

• Power Supply Units: Utilized in high-voltage power supply modules to regulate and stabilize output.
• Industrial Motor Drives: Essential for controlling large motors in industrial settings, providing precise speed and torque control.
• Audio Amplifiers: Employed in high-fidelity audio systems to deliver powerful sound amplification with minimal distortion.
