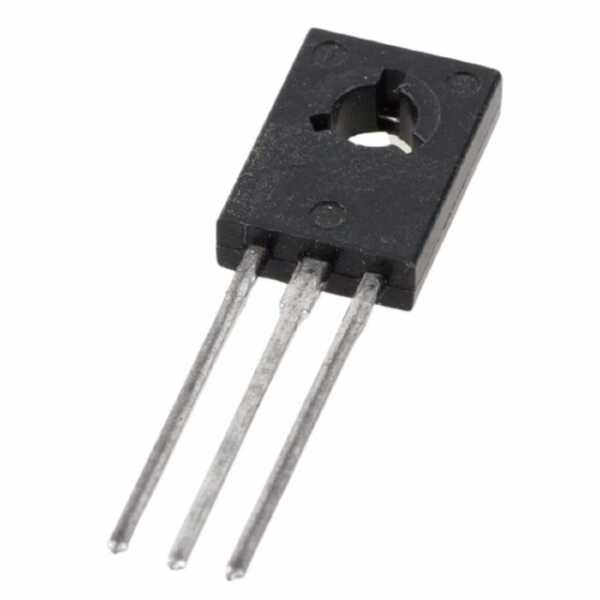

2SC2298 TO-126 60V 1A 8W NPN Transistor

2SC2298 TO-126 60V 1A 8W NPN Transistor

2SC2298 TO-126 60V 1A 8W NPN Transistor Description

2SC2298 TO-126 60V 1A 8W NPN Transistor is a high-performance NPN transistor that excels in various electronic applications requiring efficient amplification and switching. Housed in a TO-126 package, this component is designed to handle moderate power levels, making it indispensable for engineers seeking reliability and precision in electronic design. With a collector-emitter voltage of 60V, a collector current of 1A, and a power dissipation of 8W, the 2SC2298 is a versatile choice for both professional and DIY projects.

2SC2298 TO-126 60V 1A 8W NPN Transistor Features

• High Voltage Capability: Withstands up to 60V across collector-emitter terminals, suitable for high-voltage applications.
• Current Handling: Capable of delivering up to 1A collector current, ideal for moderate power applications.
• Power Dissipation: Rated at 8W, ensuring efficient heat management during operation.
• TO-126 Package: Compact and efficient design for easy integration into diverse circuit boards.
• High-Frequency Response: Optimized for applications requiring fast switching capabilities.
• Thermal Stability: Designed to maintain performance across a wide temperature range.
• Low Saturation Voltage: Enhances efficiency by minimizing power loss.

2SC2298 TO-126 60V 1A 8W NPN Transistor Applications

• Audio Amplifiers: Utilized in audio circuits to boost signal strength while maintaining sound fidelity.
• Switching Power Supplies: Essential for regulating voltage in power supply units, ensuring efficient energy conversion.
• Motor Controls: Applied in the design of motor driver circuits for precise control in industrial automation.
