2SC2274 TO-92 60V 0.5A 0.5W NPN Transistor Description

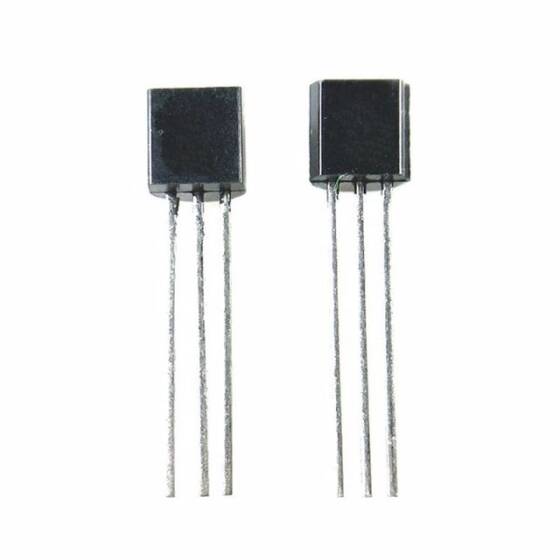

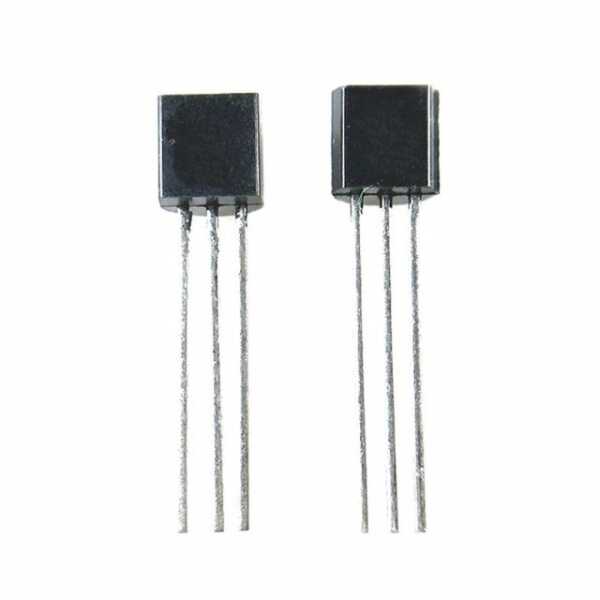

2SC2274 TO-92 60V 0.5A 0.5W NPN Transistor is a versatile NPN transistor housed in a TO-92 package, designed for a range of low to medium power switching applications. With a maximum collector-emitter voltage of 60V, it ensures robust performance in diverse electronic circuits. Its ability to handle a continuous current of 0.5A and power dissipation of 0.5W makes it an ideal choice for engineers seeking reliable transistor solutions for amplification and switching tasks.

2SC2274 TO-92 60V 0.5A 0.5W NPN Transistor Features

• High Collector-Emitter Voltage: Capable of withstanding up to 60V, ensuring reliability in demanding circuits.
• Current Handling: Supports a collector current of 0.5A, making it suitable for various electronic applications.
• Power Dissipation: Efficient performance with a power rating of 0.5W.
• Compact Package: The TO-92 package offers ease of use in compact circuit designs.
• Thermal Stability: Designed to operate effectively under varying temperature conditions.
• Low Noise Output: Minimal interference, making it ideal for audio applications.
• High Gain: Provides significant amplification levels for small input signals.

2SC2274 TO-92 60V 0.5A 0.5W NPN Transistor Applications

• Amplification Circuits: Widely used in audio amplification setups, enhancing sound clarity and quality.
• Switching Operations: Essential in switching applications for controlling various electronic components.
• Signal Processing: Integral in signal processing tasks in communication devices.
